Page 38

38
Planning and engineering

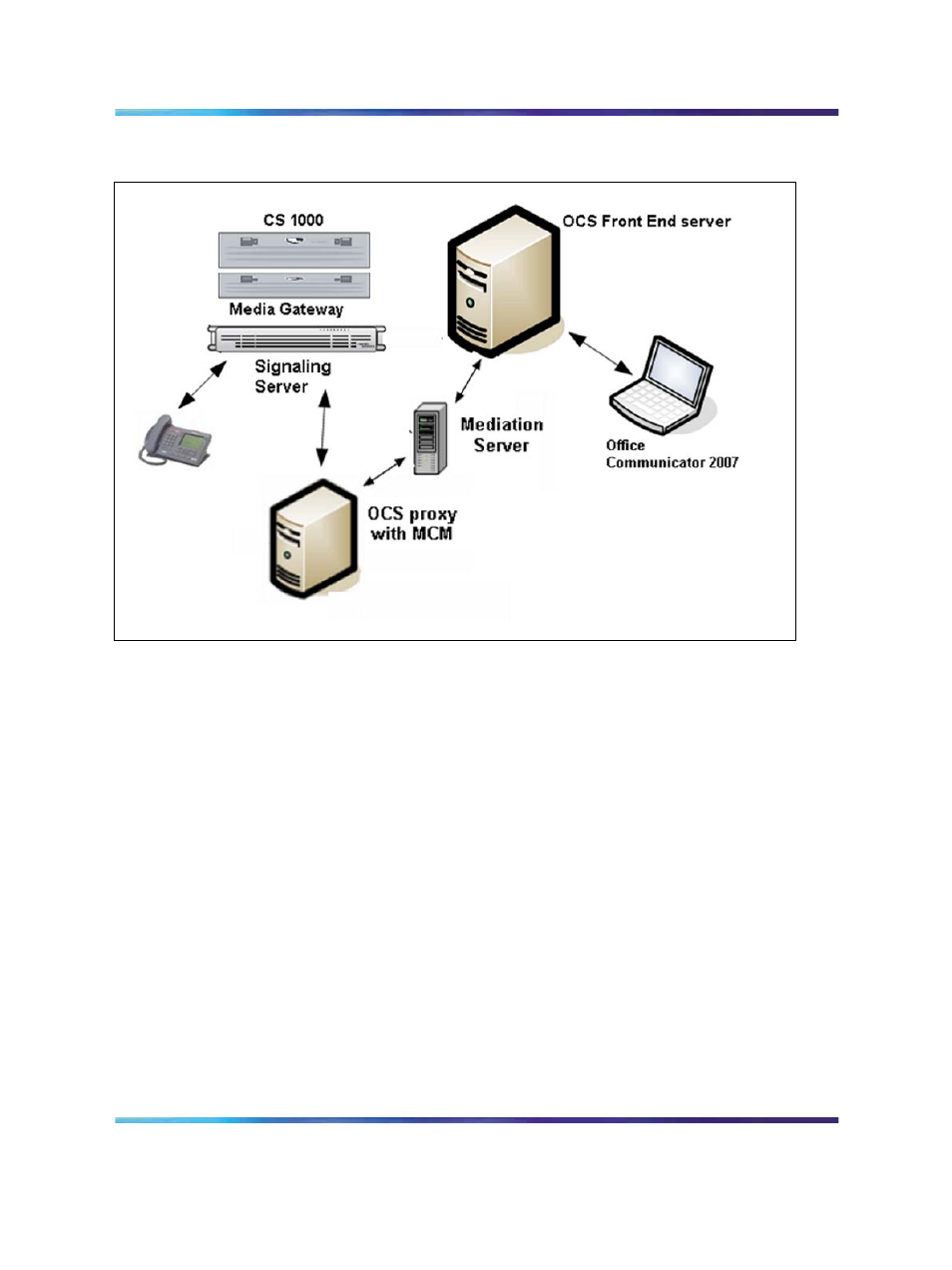

Figure 10
Small network configuration
Medium network
A medium network can include the following components:
•
one or multiple CS 1000 systems with Media Gateway and Signaling
Server
•
a Primary NRS with an Alternate Network Routing Service (NRS) that
co-reside on one of the Signaling Servers
•
up to 5000 users
•
high availability with system redundancy for OCS 2007
You will need:
•
an Office Communications Server 2007 Enterprise Edition
•
an OCS Proxy server that runs MCM 3.0
•
a Mediation Server
If you install only one OCS 2007 Enterprise Edition server, a Load Balancer
is not required. SPS (Linux-based NRS) does not support co-residency.
Nortel Communication Server 1000
Nortel Converged Office Fundamentals — Microsoft Office Communications Server 2007
NN43001-121
01.03
Standard
Release 5.0
30 April 2008
