7 • Dial In Model 3120 RAS Administrators’ Reference Guide
88 Manage DNIS Window
2. Enter a valid IP Address range. A valid IP address range is of the format xxx.xxx.xxx.aaa-bbb where aaa is
less than bbb
Note Entering an ID that is already configured will change the configura-
tion.
DNIS IP Pool Entry Window
Clicking on ID in the DNIS IP Pool Window will take you to this window (see figure 36). In this window you
can change the IP Address Pool.

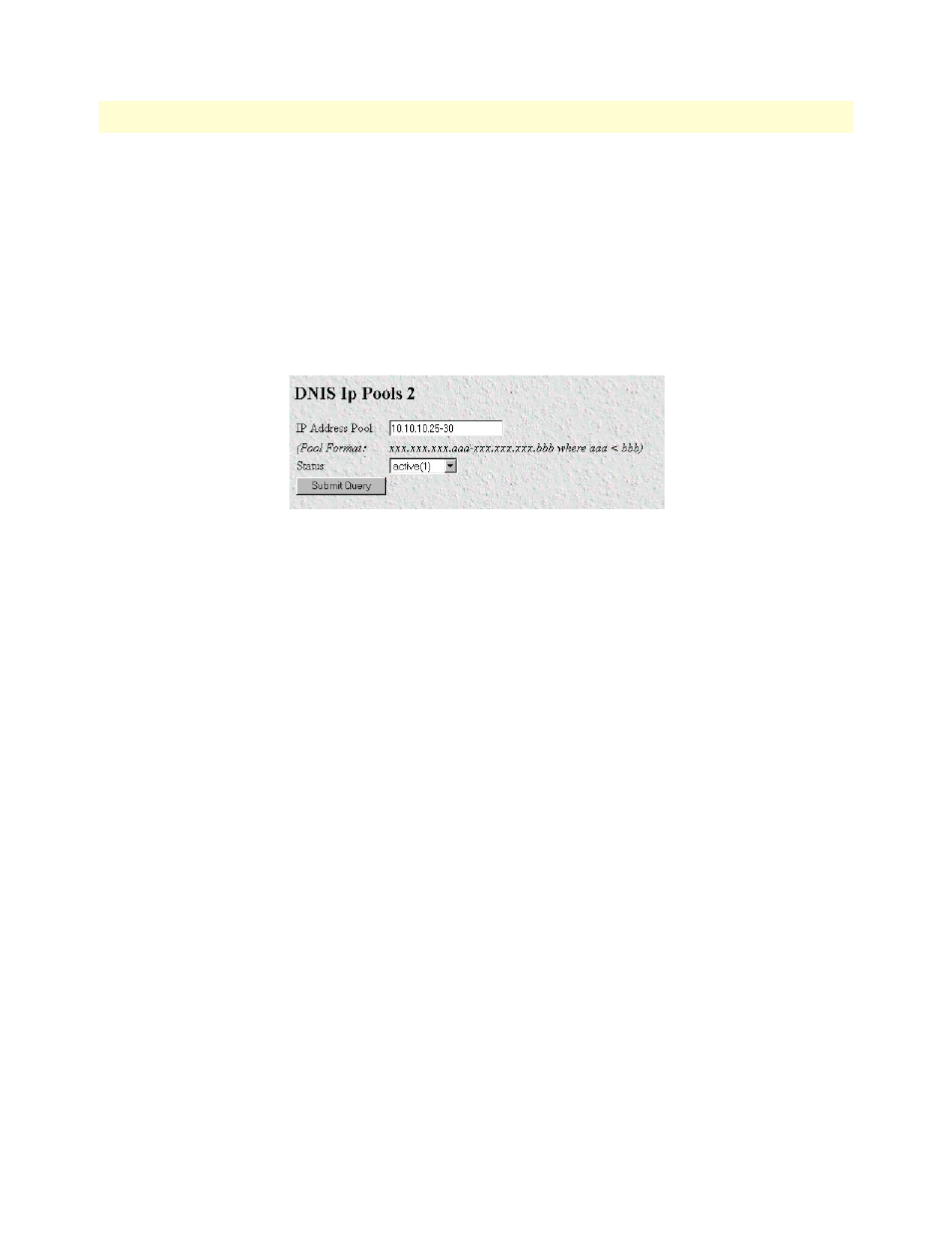

Figure 36. DNIS IP Pools Entry window
IP Address Pool (dnisIpPool)
The IP Address pool that an IP address will be selected from for a dial-in user.
Status (dnisIpPoolStatus)
Indicates if the IP pool is used in any DNIS Profile.
• active(1)—This IP pool is used in one or more DNIS Profiles
• notUsed(2)—This IP pool is not used in any configurations
• destroy(3)—deletes the IP Address Pool entry
