Dial Out User Statistics window 131
Model 3120 RAS Administrators’ Reference Guide 8 • Dial Out
Phone
This portion of the Dial Out User Statistics window (see figure 53) shows the phone numbers that were used
by this caller.

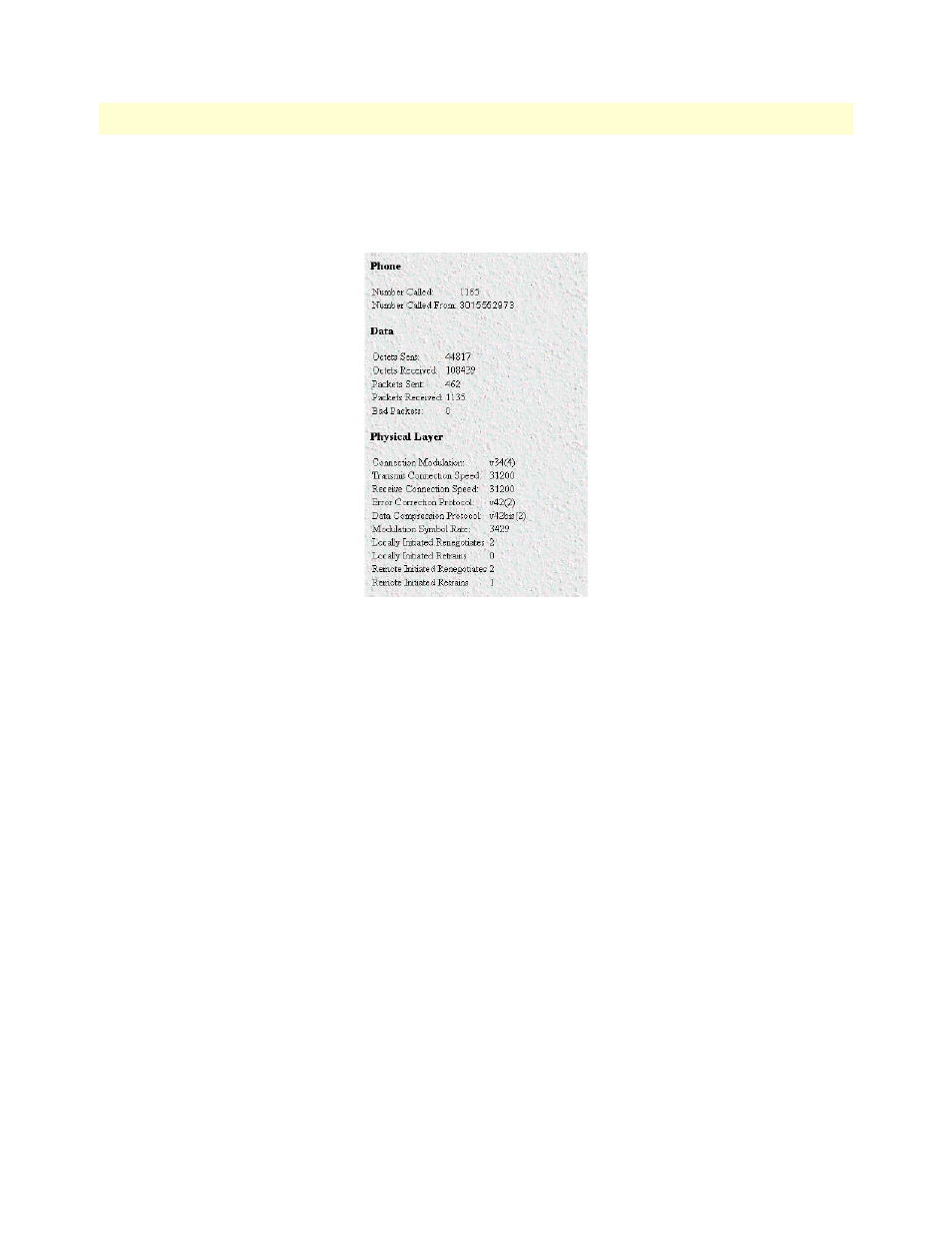

Figure 53. Dial Out User Statistics window
Number Called (doactNumberDialed)
The phone number that was used to dial the remote location
Data
This portion of the Dial Out User Statistics window (see figure 53) describes the amount of PPP data sent and
received by this user.
Octets Sent (doactSentOctets)
The number of octets (bytes) sent during this call.
Octets Received (doactReceivedOctets )
The number of octets (bytes) received during this call.
Packets Sent (doactSentDataFrames)
The number of packets sent to the user during this call. Version 6 nomenclature for a packet is Ipv6 header
plus payload.
Packets Received (doactReceivedDataFrames)
The number of packets received by the user during this call. Version 6 nomenclature for a packet is Ipv6 header
plus payload.
Bad Packets (doactErrorFrames)
Number of bad received packets received during this call. Bad packets are those that failed CRC error checks.
