3 • Import/Export Model 3120 RAS Administrators’ Reference Guide
22 Introduction
Introduction
The Import/Export function enables you to make a backup (or export) copy of your access server’s configura-
tion parameters. By exporting the configurations, the saved files can quickly be loaded, or imported, into a
replacement access server—greatly speeding up the installation process should an access server need replacing.
Note All actions for Import/Export require superuser access privileges.
To import or export a configuration, click on Import/Export under the Configuration Menu to display the
Import/Export main window (see figure 6).

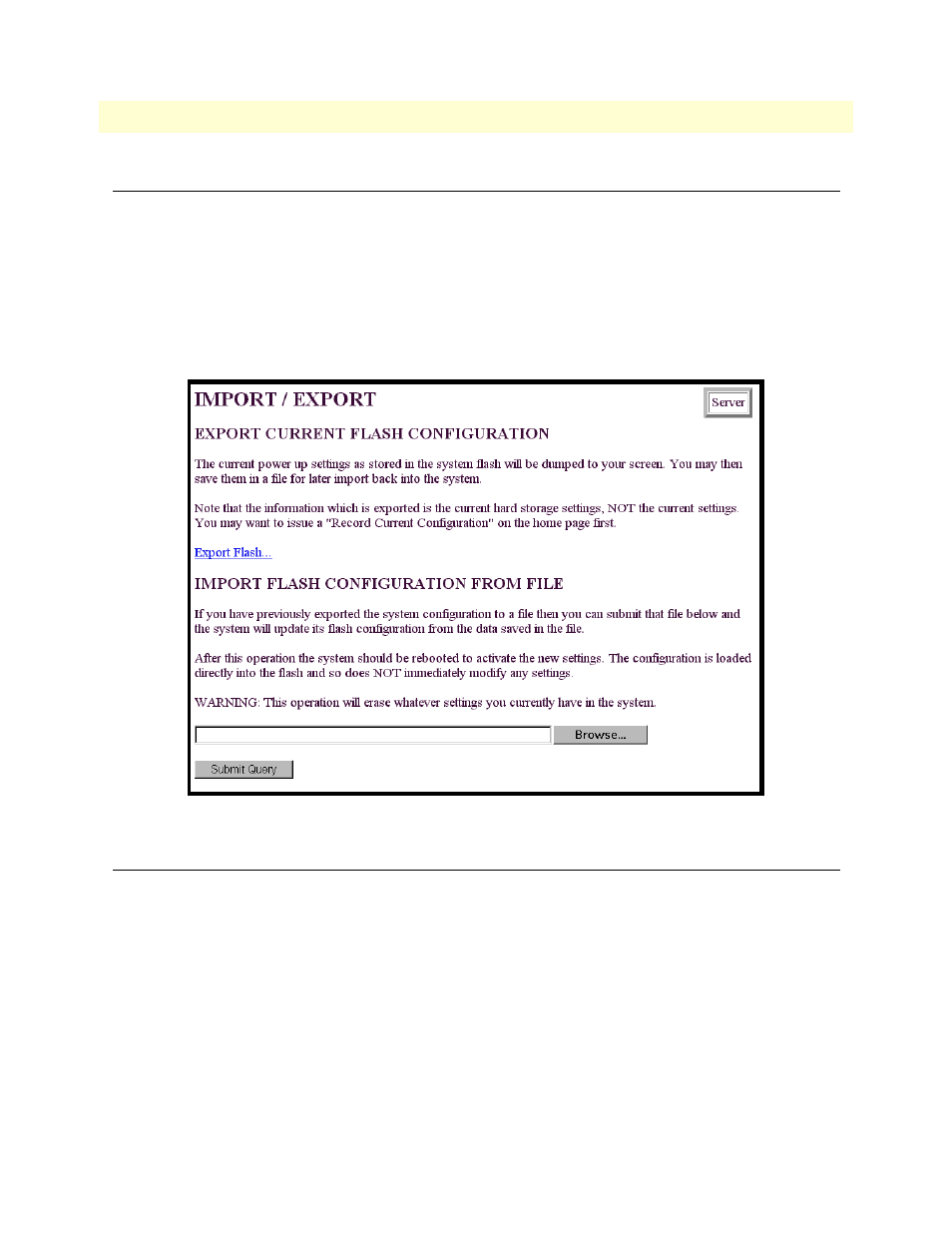

Figure 6. Import/Export main window
Export Configuration
Note The exported configuration file is a text-format file. Do not try, how-
ever to edit the operating characteristics contained in the file.
Note The parameters that will be exported are the power-up settings as
they are stored in flash memory and may not be the current operating
parameters. To ensure that you export the most current parameters,
go to
HOME , then click on the Record Current Configuration
button under Immediate Actions .
To export the flash configuration, click on the Export Flash link on the Import/Export main page. The access
server will display text configuration information resembling that shown in figure 7.
