4 • Alarms Model 3120 RAS Administrators’ Reference Guide
30 Modify Alarms—Configuring alarm severity levels
• priorityService(60)
• prioritySystem(80)
• priorityDisable(1000)
• priorityDisable(1000)
Alarm SNMP Trap IP 1 (alarmTrapIp0)
The IP address of a host system which is running the SNMP trap daemon. Critical and major alarm messages
will be sent to the system. If set to 0.0.0.0 then no trap message will be sent in response to a major alarm.
Alarm SNMP Trap IP 2 (alarmTrapIp1)
The IP address of a host system which is running the SNMP trap daemon. Critical and major alarm messages
will be sent to the system. If set to 0.0.0.0 then no trap message will be sent in response to a major alarm.
Alarm SNMP Trap IP 3(alarmTrapIp2)
The IP address of a host system which is running the SNMP trap daemon. Critical and major alarm messages
will be sent to the system. If set to 0.0.0.0 then no trap message will be sent in response to a major alarm.
Alarm SNMP Trap IP 4(alarmTrapIp3)
The IP address of a host system which is running the SNMP trap daemon. Critical and major alarm messages
will be sent to the system. If set to 0.0.0.0 then no trap message will be sent in response to a major alarm.
Temperature Threshold(boxAlarmTemperature)
If the box registers a temperature (in degrees Celsius) greater than this temperature an alarm will be reported.
Modify Alarms—Configuring alarm severity levels
The Modify Alarms window (see figure 12) is where you can set the severity level each alarm condition gener-
ates and whether it can be a self-clearing condition.

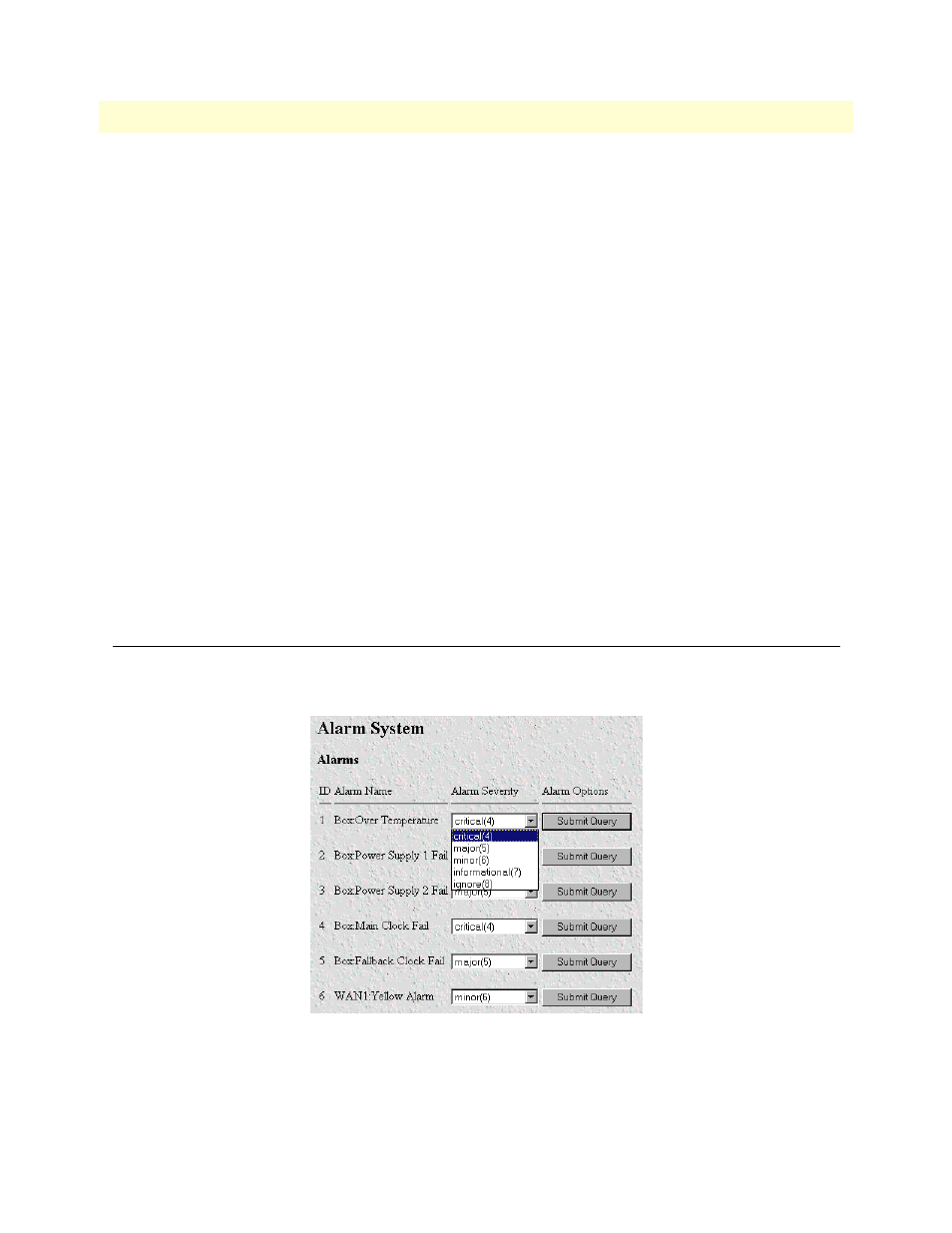

Figure 12. Modify Alarms settings window
The following alarm items that can be configured to generate alarm conditions:
• Box: Over Temperature—An alarm will trigger if the current temperature exceeds the temperature threshold.
• Box: Power Supply 1–2 Fail—An alarm will be triggered if power supply 1 or 2 fails.
