268 Line Status—Configuration
Line Status—Configuration
Clicking on the Line Status—Configuration link in the T1/E1 Link Activity window displays the WAN Con-
figuration window. This window contains general information about the DS1 interface, including the type of
line (D4 Superframe or Extended Superframe), and kind of line coding (B8ZS or AMI). To modify the WAN
circuit configuration, click on the Modify… link. For more information about modifying WAN circuit set-
tings, refer to “WAN Configuration—Modify” on page 269.

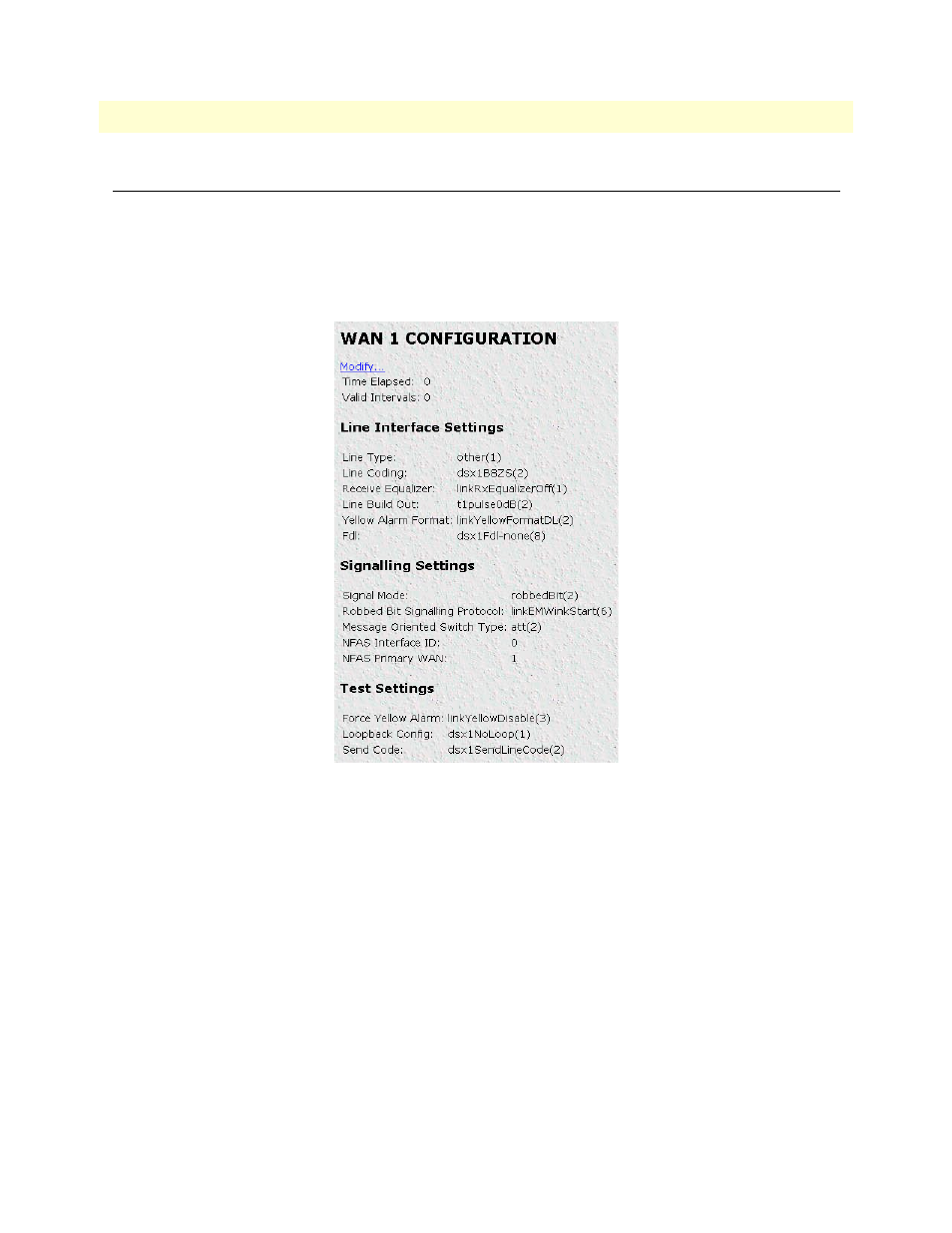

Figure 107. WAN Circuit Configuration window
Note Use the DAX menu to view clock source for the Model 29XX series
access servers.
The WAN Configuration window also displays the amount of time that has passed and the number of intervals
passed during which valid data was collected.
Time Elapsed (dsx1TimeElapsed)
The number of seconds that have elapsed since the beginning of the current error-measurement period.
Valid Intervals (dsx1ValidIntervals)
The number of previous intervals for which valid data was collected. The value will be 96 unless the interface
was brought on-line within the last 24-hours, in which case the value will be the number of complete 15-
minute intervals since the interface has been online.
