MFR Version 2—Modify 219
Model 3120 RAS Administrators’ Reference Guide 17 • MFR Version 2
MFR Version 2—Modify
In the MFR Version 2 Modify window (see figure 91) you can modify Line Signalling parameters. The Line
Signalling parameters are link-by-link digital signals that use two signalling channels in each direction per cir-
cuit.

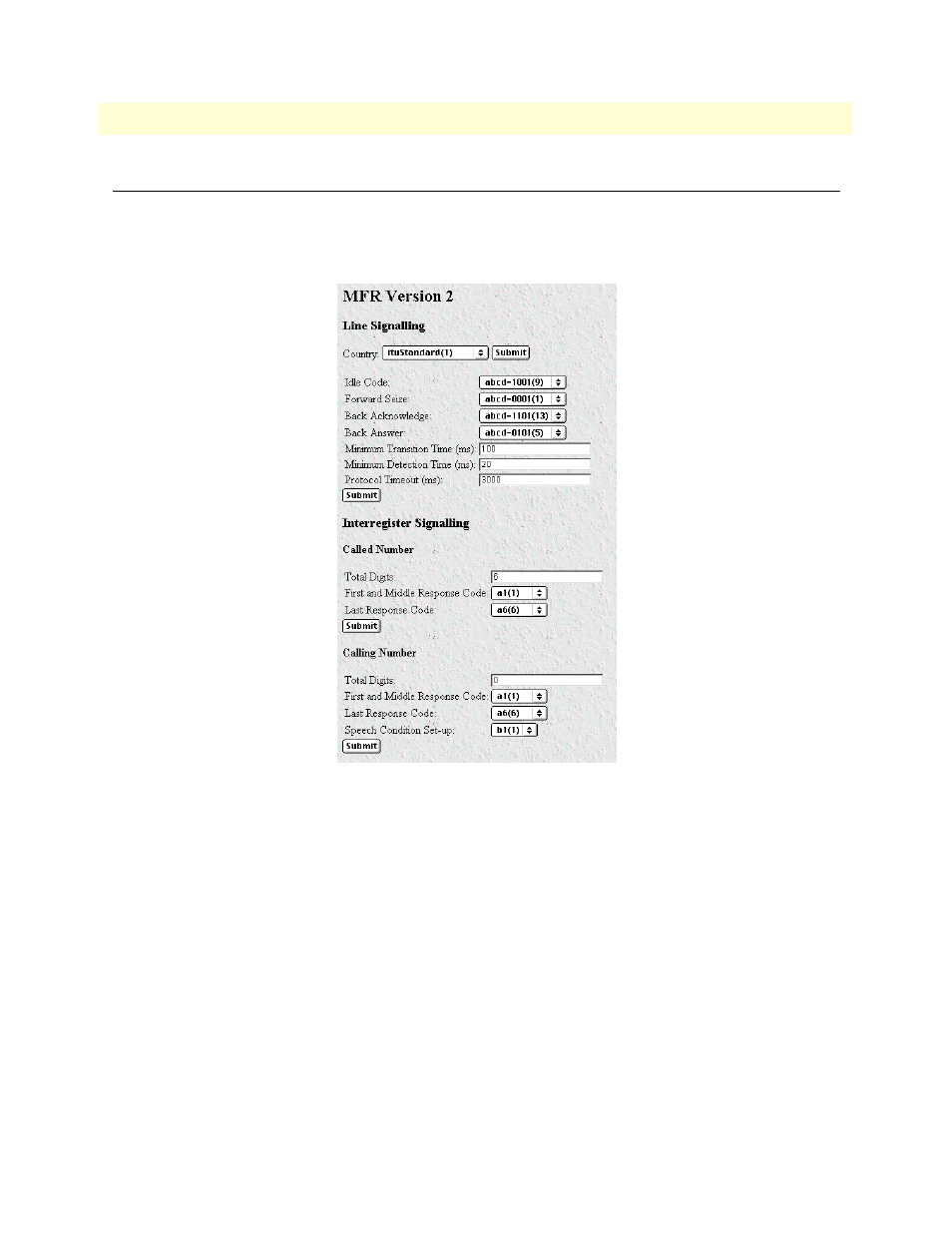

Figure 91. MFR Version 2 Modify window
Line Signalling
This portion of the MFR Version 2—Modify window contains information described in the following sec-
tions.
Set the access server objects based upon codes that pertain to Idle, Seized, Answered, Clear-back, Release, and
Blocked conditions.
Note Line Signalling setup codes are country-specific. Please refer to Rec-
ommendation Q.400 -Q.490 and to the host country’s PTT for
national signalling specifications.
