11 • Digital Signal Processing (DSP) Model 3120 RAS Administrators’ Reference Guide
152 DSP Connection Performance
DSP Connection Totals
This portion of the window (see figure 63) shows statistics on a per-DSP basis.

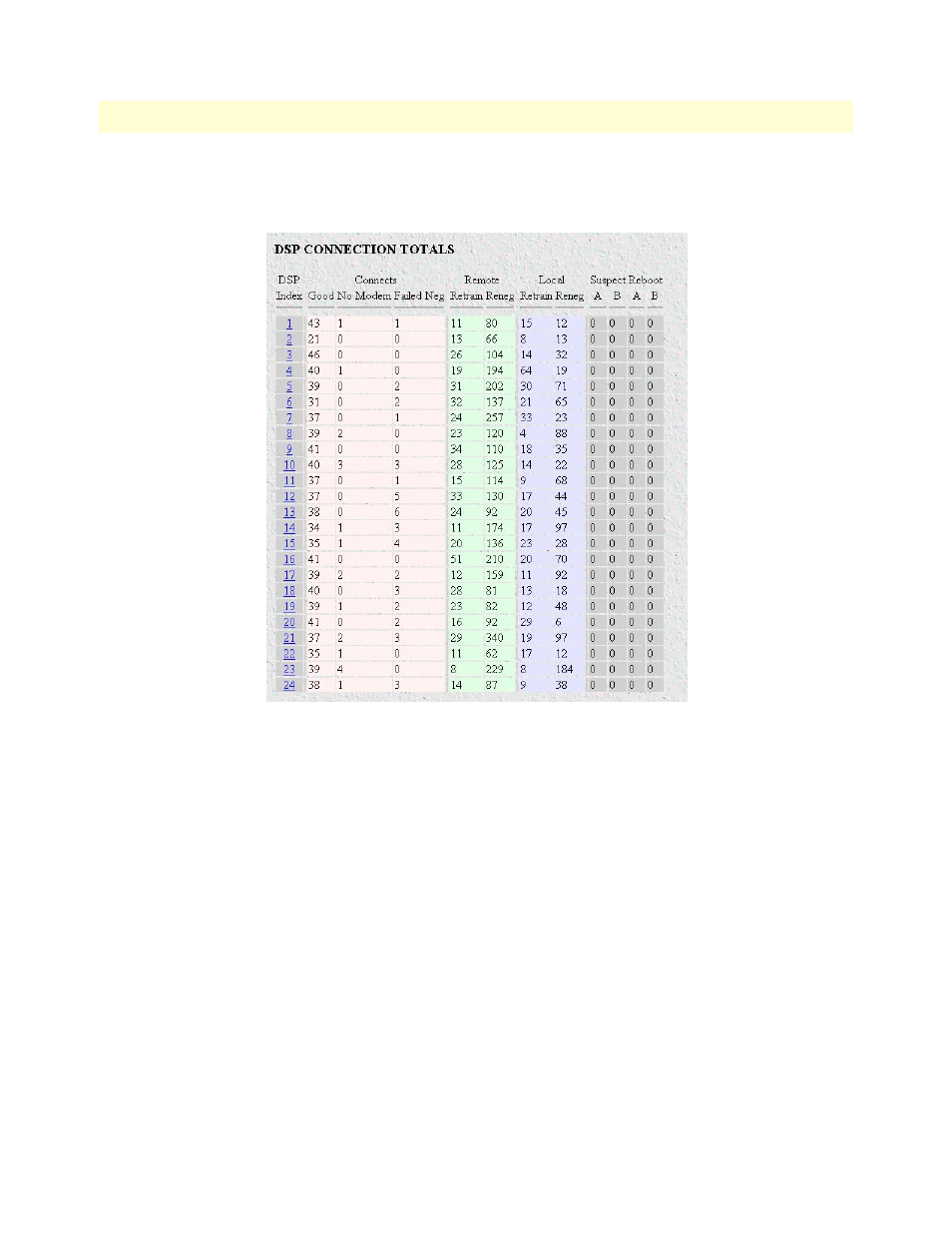

Figure 63. Connection Summary portion of DSP Connection Performance window
DSP Index (dspIndex)
The unique identifier of the DSP being reported on. Clicking on the
DSP Index link displays detailed informa-
tion about the DSP (see section “DSP information window” on page 154).
Connects—Good (dspSuccessfulConnects)
The number of calls that successfully connected
Connects—No Modem (dspFailedConnectPreV8)
The number of calls that failed before modulation V8 was completed.
Connects—Failed Neg (dspFailedConnectPostV8)
The number of calls that failed to connect after V8 modulation was completed.
Remote—Retrain (dspRemoteRetrains)
The number of times the remote modem has asked for a retrain to be done.
