P atton’s Model 1053AS is a long-range
powered, digital modem that operates
synchronously or asynchronously at
full duplex over a single twisted pair. The
Model 1053AS utilizes 2B1Q modulation for
superior signal strength even in the noisiest
environments. RS-232 serial connections
with speeds of 128 kbps can now be extend-
ed to distances over 5 miles (8 km) without
the use of repeaters! Using ordinary voice-
grade wire, the 1053AS Serial Extender pro-
vides a cost-effective solution for high speed,
dedicated end-to-end connections with syn-
chronous line rates up to 128 kbps and asyn-
chronous line rates up to 115.2 kbps that
include RTS, CTS and DCD modem signals.
The Model 1053AS modem’s miniature size
allows for a direct connection to your trans-
mission devices serial port. Two 8-position
DIP switches are located at the bottom of the
unit to allow the configuration of various
asynchronous or synchronous line rate set-
tings. Additionally, LEDs are conveniently
located on the side of the Model 1053AS to
provide at-a-glance status indication of the
unit.
For more information, visit
www.patton.com .

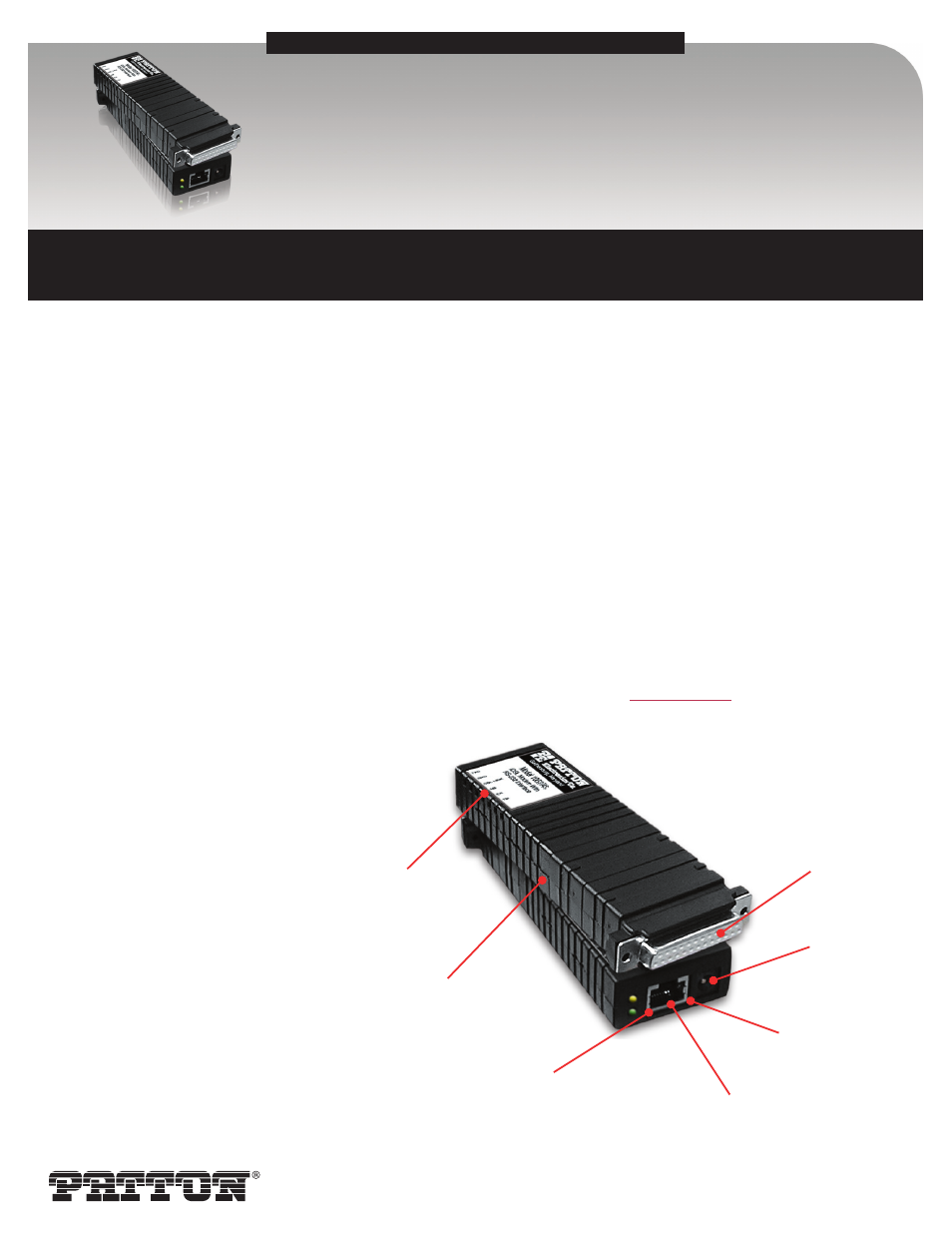

The Model 1053AS miniature high-speed digital modem offers multi-rate Async/Sync speeds to 115.2/128 kbps with
transparent modem signal controls. This 2-wire full-duplex modem uses 2B1Q modulation for superior noise immunity.
High Speed Serial Extender
Model 1053AS
Connectivity: WAN Products
Multi-Rate Speeds
Full-duplex synchronous rates to 128 kbps and
asynchronous rates to 115.2 kbps
Pass RS-232 Control Signals
Transparently passes CTS, RTS, and DCD over
the 2-wire line
Long Reach
Industry leading distances of over 26,000 feet (8
km) without repeaters
Power Options
Universal AC power (90–260 VAC) as well as -12,
-24, & -48 VDC
Noise Immunity
The 1053AS uses 2B1Q for improved perform-
ance in noisy environments
LED indicators
Transparently passes RS-232
control signals
2-Wire full-duplex up to 128 kbps
Sync and 115.2 kbps Async
Interface options include
RS-232, DB-25, or DB-9
AC or DC
power options
5 mile (8 km) reach
in noisy environments
Transformer isolation of
1500 VRMS
