7 • Dial In Model 3120 RAS Administrators’ Reference Guide
80 Manage DNIS Window
• requireV42bis(2)—V.42bis data compression is mandatory, otherwise disconnect.
• V44(3)—allows V.44 and V.42bis data compression.

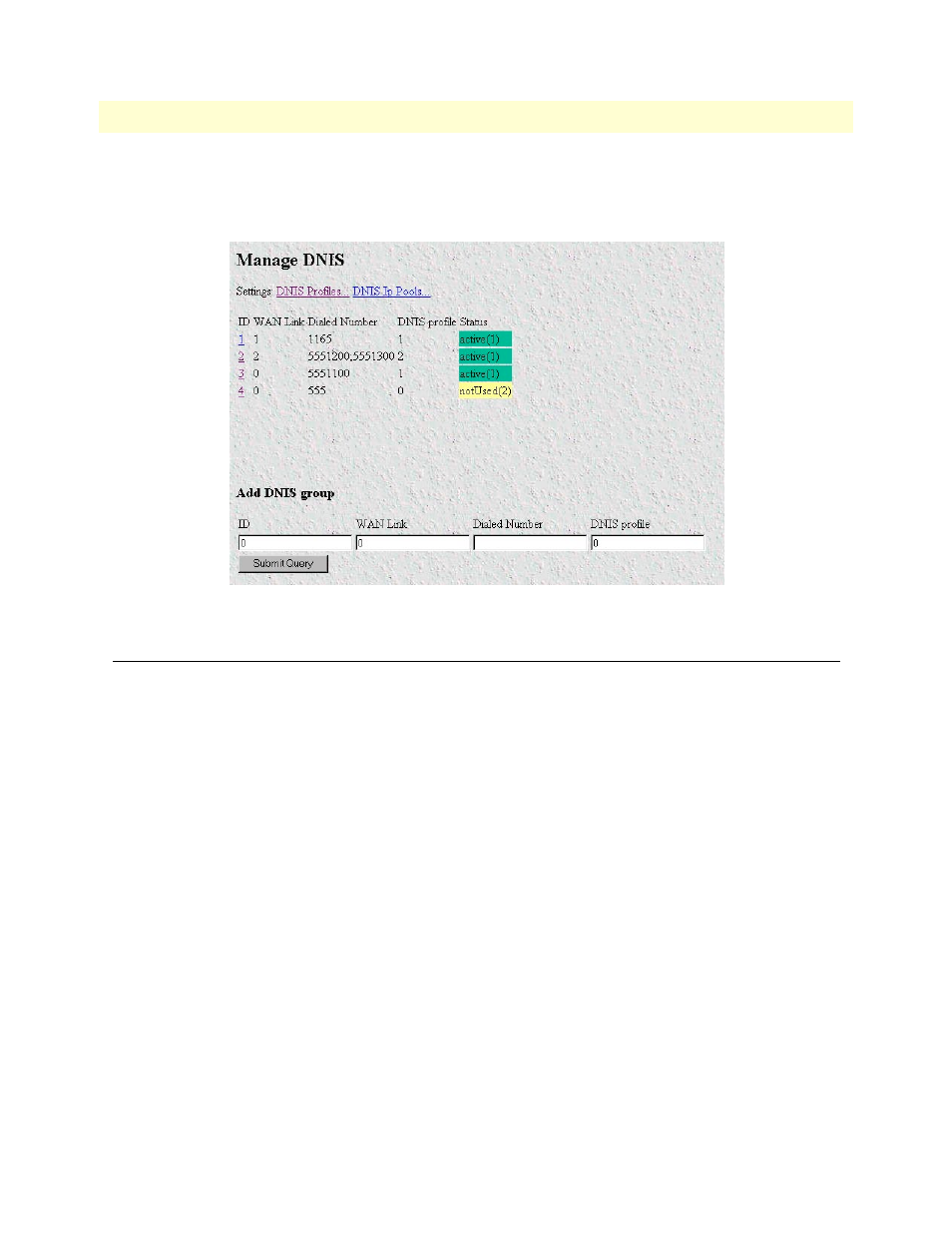

Figure 31. Manage DNIS window
Manage DNIS Window
The Manage DNIS window (see figure 31) shows the current configurations for dial-in users based on WAN
link and called number.
This feature makes use of DNIS (Dialed Number Identification Service), a feature that can be implemented on
your T1/E1. DNIS is a telephone service that identifies for the receiver or a call, the number that the caller
dialed. DNIS works by passing the touch-tone digits (dual-tone multi-frequency or MF digits) to the destina-
tion for use by the terminating device.
The RAS uses its ability to capture DNIS information to provide the customer with the ability to set up dial-in
parameters for their dial-in clients based on the phone number dialed and the physical WAN port they have
dialed into or just the number dialed. The DNIS management feature allows you to configure the authentica-
tion method and the IP address pool.
The Manage DNIS Window contains the following items:
• Information about DNIS configurations set-up—to view or modify individual DNIS configurations, select
an ID in the ID column. For more information about modifying a DNIS configuration, refer to “DNIS
Entry Window” on page 82
• DNIS Profiles—clicking on the DNIS Profiles link takes you to the page where you can view and change
the DNIS profiles. Refer to “DNIS Profiles Window” on page 83
• DNIS Ip Pools—clicking on the DNIS Ip Pools link takes you to the page where you can view and change
the IP address pools. Refer to “DNIS IP Pools Window” on page 87
