18 • RIP Version 2 Model 3120 RAS Administrators’ Reference Guide
228 Introduction
Introduction
The RIP Version 2 main window (see figure 92) describes routing information as defined by the Routing Infor-
mation Protocol (RIP). All object identifiers described in this chapter comply with those contained in RFC
1389: RIP Version 2 MIB Extension.
\

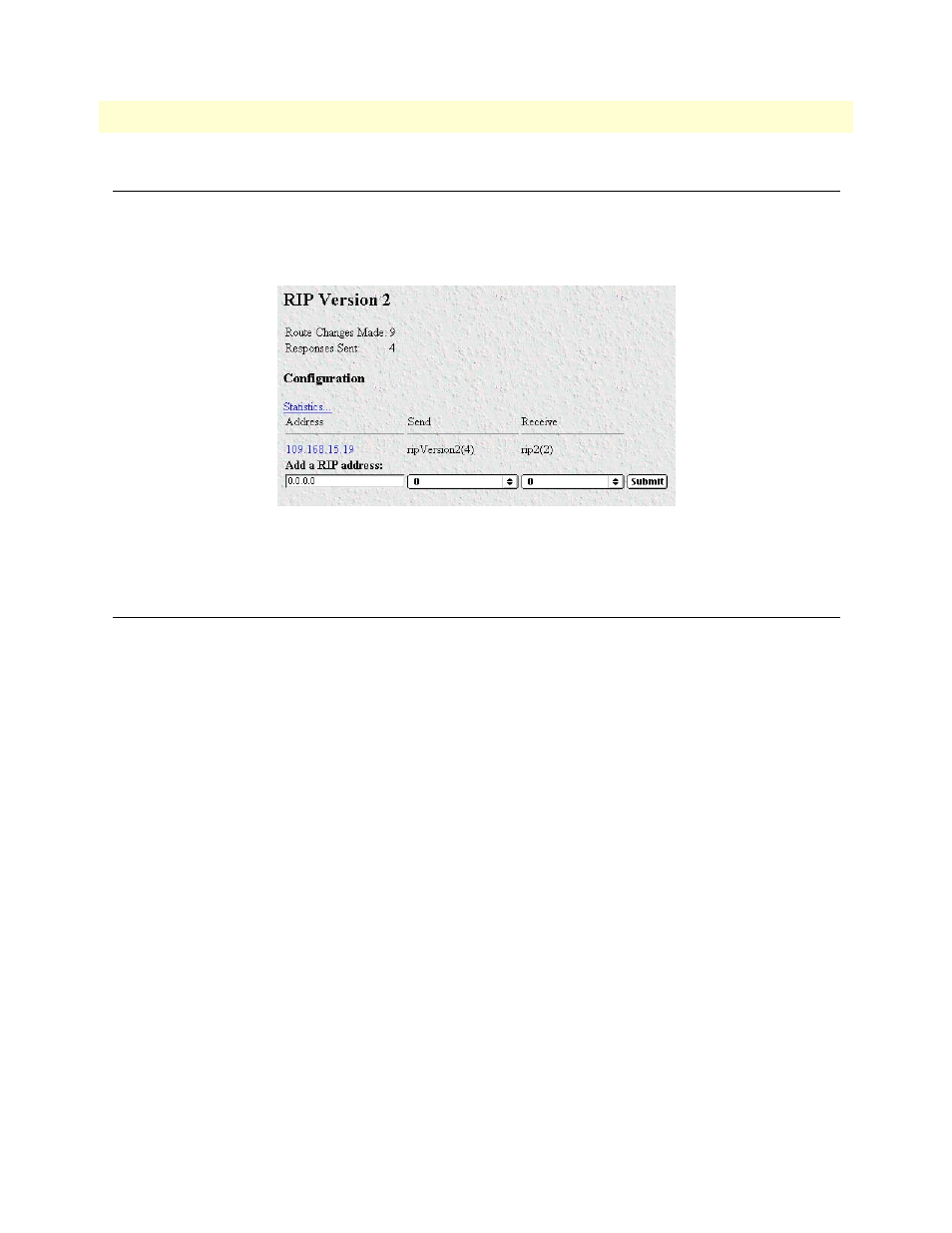

Figure 92. RIP Version 2 window
Click on RIP Version 2 under the Configuration Menu to display the RIP Version 2 main window.
RIP Version 2 main window
The RIP Version 2 window describes routing information as defined by the Routing Information Protocol
(RIP). The window also contains the following links:
• Statistics (xxx.xx.xxx.xxx)—Clicking on the link under the Address column displays the RIP Version 2 Sta-
tus window (see “RIP Version 2 (Statistics)” on page 231) where you can view routing and update informa-
tion for each subnet address
• Address—Clicking on this link displays the RIP Version 2 Configuration window (see “RIP Version 2—
Configuration” on page 230). This window is where you can configure objects for each subnet address
including authentication method, RIP Version 1 or Version 2 compatibility, and metric value.
Route Changes Made (rip2GlobalRouteChanges)
The number of route changes made to the IP Route Database by RIP. This does not include the refresh of a
route's age.
Responses Sent (rip2GlobalQueries)
The number of responses sent to RIP queries from other systems.
Address (rip2IfConfAddress)
The IP address of the interface on the access server.
Send (rip2IfConfSend)
The types of RIP packets the router sends on this interface.
• doNotSend (1)
