Configuring Frame Relay 327
Model 3120 RAS Administrators’ Reference Guide C • Technical Reference
2. Type in the Destination network (see figure 133). This number must correspond to the mask specified. (For
example, if you wish to forward a C class address you would leave the last octet as 0.)

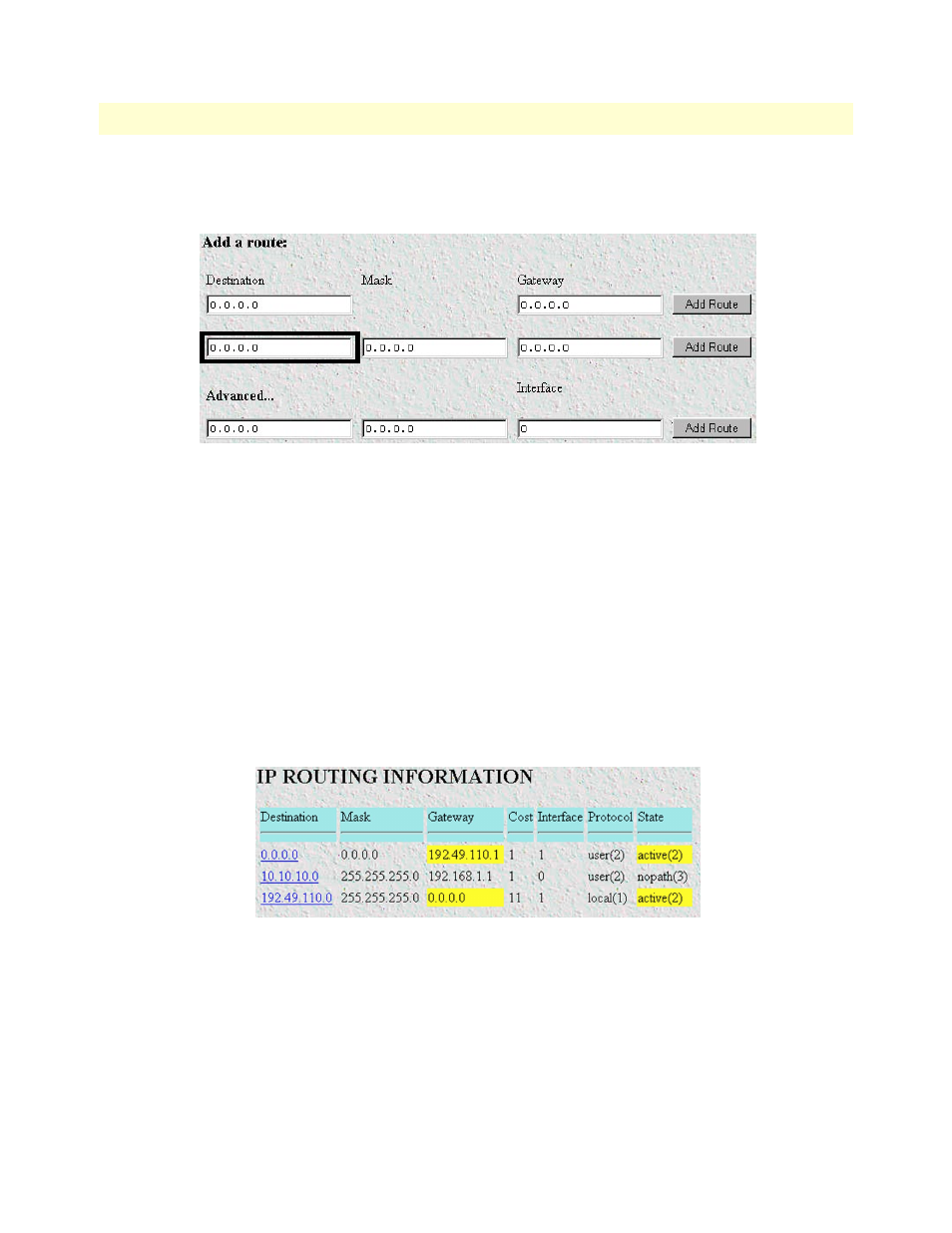

Figure 133. Adding a route
3. Type in the Mask to define the network. This must correspond to the destination network. (For example,
if you wish to forward a C-class address you would specify the mask as 255.255.255.0.)
4. Type in the next-hop gateway.
5. Click Add Route .
6. The route will now appear in the routing table. To use the frame relay as the default gateway, enter the
next-hop gateway of the frame relay link in the gateway field of the first set of entry items. Click Add Route .
Link Status and the IP Forwarding
If the Frame Relay link is down, the address will automatically be removed from the routing table. If there are
any routes which specify this IP address as the next-hop, the routing table will show the state of
noPath(3) (see
figure 134).
Figure 134. Link status and IP forwarding
When the Frame Relay Link returns to the UP state, the IP route for the link will be re-added and used to for-
ward IP packets. Any routes that specify this IP address as the next-hop will automatically return to the active
state.
