16 • IP Model 3120 RAS Administrators’ Reference Guide
200 TCP
Total Retransmitted (tcpRetransSegs)
The total number of segments retransmitted—that is, the number of TCP segments transmitted containing
one or more previously transmitted octets.
Total Received in Error (tcpInErrs)
The total number of segments received in error (e.g., bad TCP checksums).
Total Sent w/RST Flag (tcpOutRsts)
The number of TCP segments sent containing the RST flag.
TCP Details
From this screen you can view port details for remote and local TCP connections (see figure 80). You must
enable the Facility Data Link (FDL) object in the T1/E1 Link section to read remote TCP port connections.
To reach this screen, click on the Details link from the TCP main window.

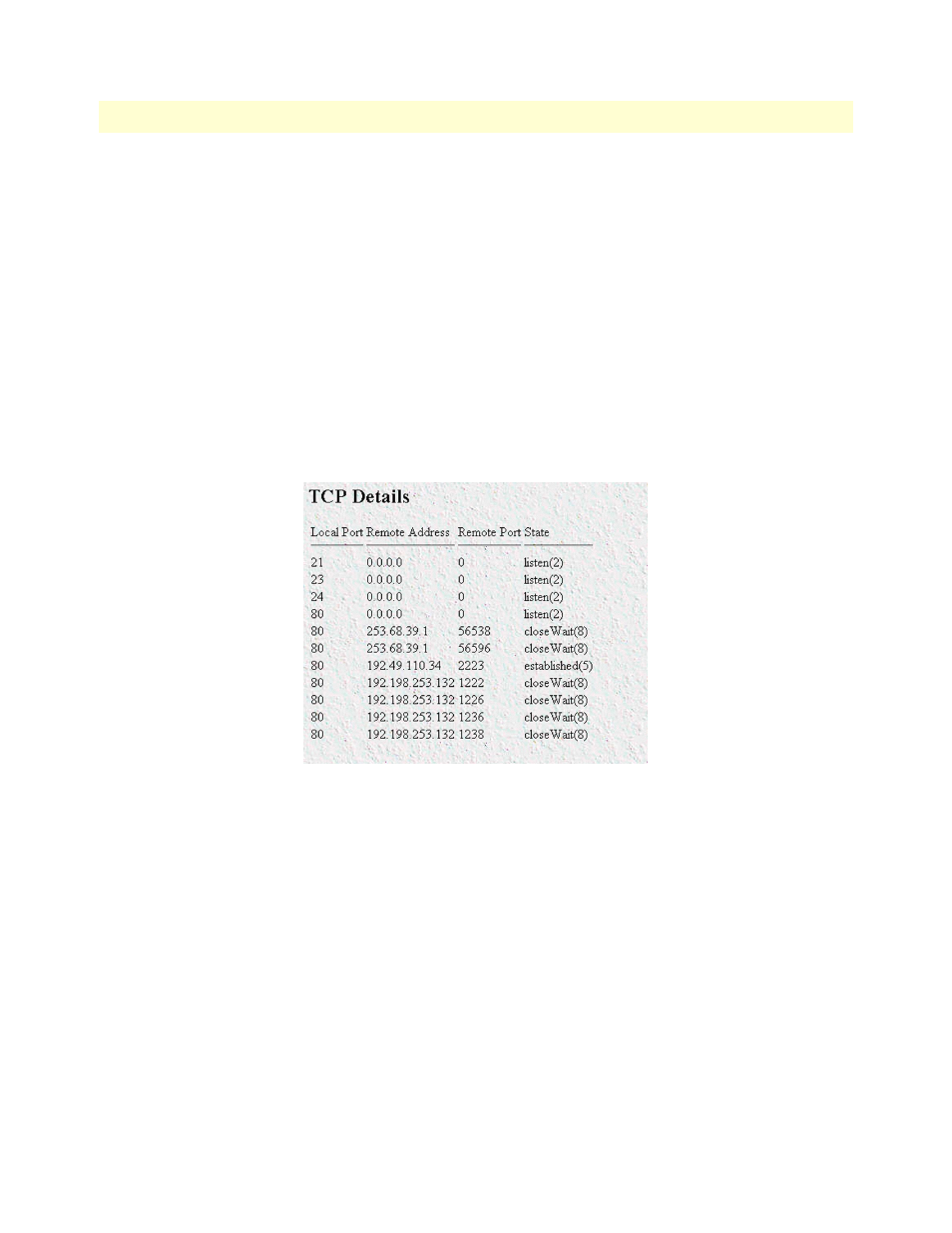

Figure 80. TCP Details window
Local Port (tcpConnLocalPort)
The local port number for this TCP connection.
Remote Address (tcpConnRemAddress)
The remote IP address for this TCP connection.
Remote Port (tcpConnRemPort)
The remote port number for this TCP connection.
State (tcpConnState)
The state of this TCP connection. The only value which may be set by a management station is
deleteTCB(12). Accordingly, it is appropriate for an agent to return a ‘badValue’ response if a management sta-
tion attempts to set this object to any other value. If a management station sets this object to the value
