19 • SNMP Model 3120 RAS Administrators’ Reference Guide
234 Introduction
Introduction
The access server provides management and statistical information on SNMP. Detailed information on the
SNMP MIB variables are found in RFC 1213: Management Information Base for Network Management of TCP/
IP-based internets: MIB-II. Select SNMP from the access server Configuration Menu to monitor SNMP statis-
tics. Click on
SNMP under the Configuration Menu to display the SNMP window (see figure 95).

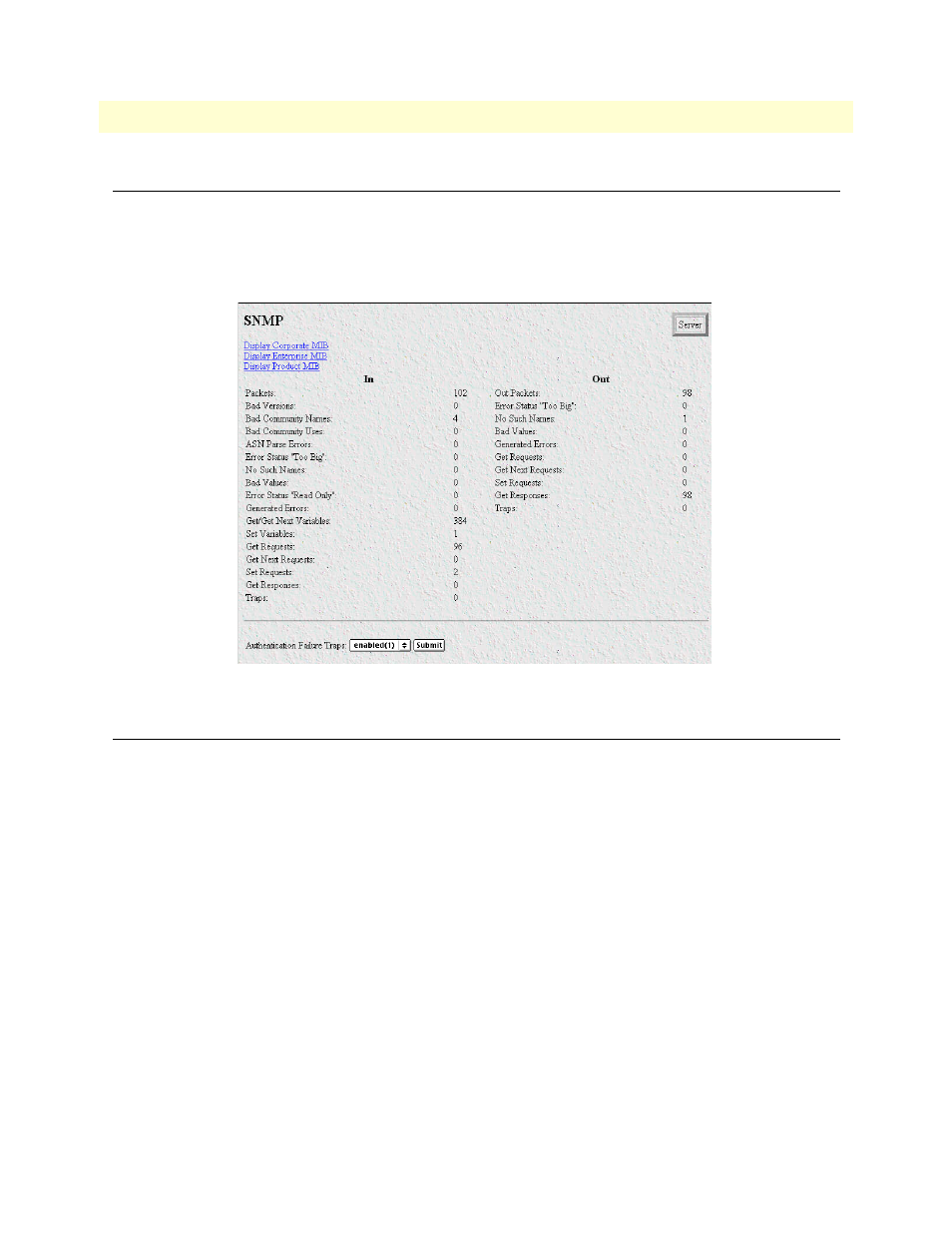

Figure 95. SNMP window
SNMP window
The SNMP window displays incoming and outgoing SNMP statistics, and has links for downloading and dis-
playing the following MIB documents:
• Corporate MIB—defines overall structure of the RAS MIB
• Enterprise MIB—defines MIB variables applicable to a group of products
• Product MIB—defines MIB variables specific to a particular product
The access server also supports MIB variables defined in the following RFCs:
• 1155—Structure and Identification of Management Information for TCP/IP-based Internets
• 1213—Management Information Base for Network Management of TCP/IP-based Internets: MIB-II
• 1315—Management Information Base for Frame Relay DTEs
• 1389—RIP Version 2 MIB Extension
• 1406—Definitions of Managed Objects for the DS1 and E1 Interface Types
• 1643—Definitions of Managed Objects for the Ethernet-like Interface Types
