11 • Digital Signal Processing (DSP) Model 3120 RAS Administrators’ Reference Guide
154 DSP information window
DSP information window
This is where you can view and modify parameters for a single DSP.

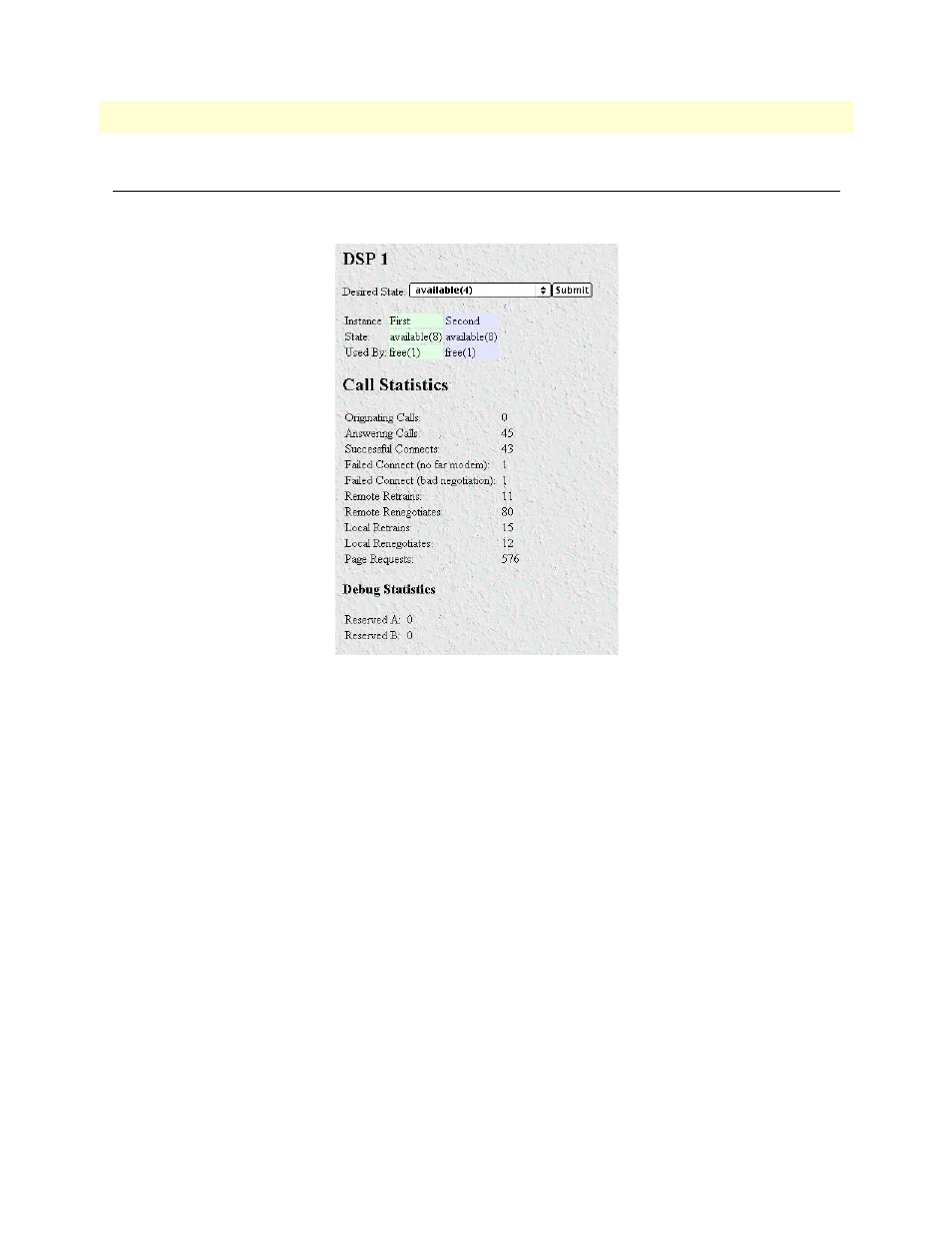

Figure 64. DSP information window (Call and Debug Statistics)
DSP Status
This portion of the DSP information window shows information about the overall status of the selected DSP.
Desired State (dspDesiredState)
The state of the DSP desired by the administrator—this state may be different than its actual state.
• pendingReboot(1)—This will put the individual DSP into the pendingBoot reset state, any calls on the
DSP will be immediately disconnected and the DSP rebooted.
• RebootNow(2)—This will disconnect all calls on the DSPs and perform the DSP reboot immediately.
• unavailable(3)—DSP has been taken out of the resource pool
• available(4)—DSP is available for use
• availableFirstOnly(17)—Marks the second instance of the DSP unavailable.
• availableSecondOnly(18)—Marks the first instance of the DSP available.
• forceDerail(19)—This is for use by the engineers and technical support for testing purposes only. Do not
use.
