Model 3120 RAS Administrators’ Reference Guide 12 • Ethernet
Note This address is not propagated via RIP.
SecondaryIpMask (boxEtherASecondaryIpMask)
The secondary IP ethernet IP subnet mask.
SecondaryIpFilters (boxEtherASecondaryIpFilters)
Filters packets based on the filters assigned to the Secondary IP address of the Ethernet port. Enter the Filter
ID of a filter configured under Filter IP. Separate multiple filters using a comma (,).
Technique (boxEtherATechnique)
Turns ethernet port off and on. The remote access server must be reset for this setting to take effect.
• disable(0) - ethernet port is disabled
• static(1) - ethernet port is turned on. IP address(es) and mask(s) are obtained from data entered under the
Ethernet link.
Ethernet B Modify Window
This window allows you to make changes to the configuration for Ethernet port B.
To reach this window, select Modify from the Ethernet main window.

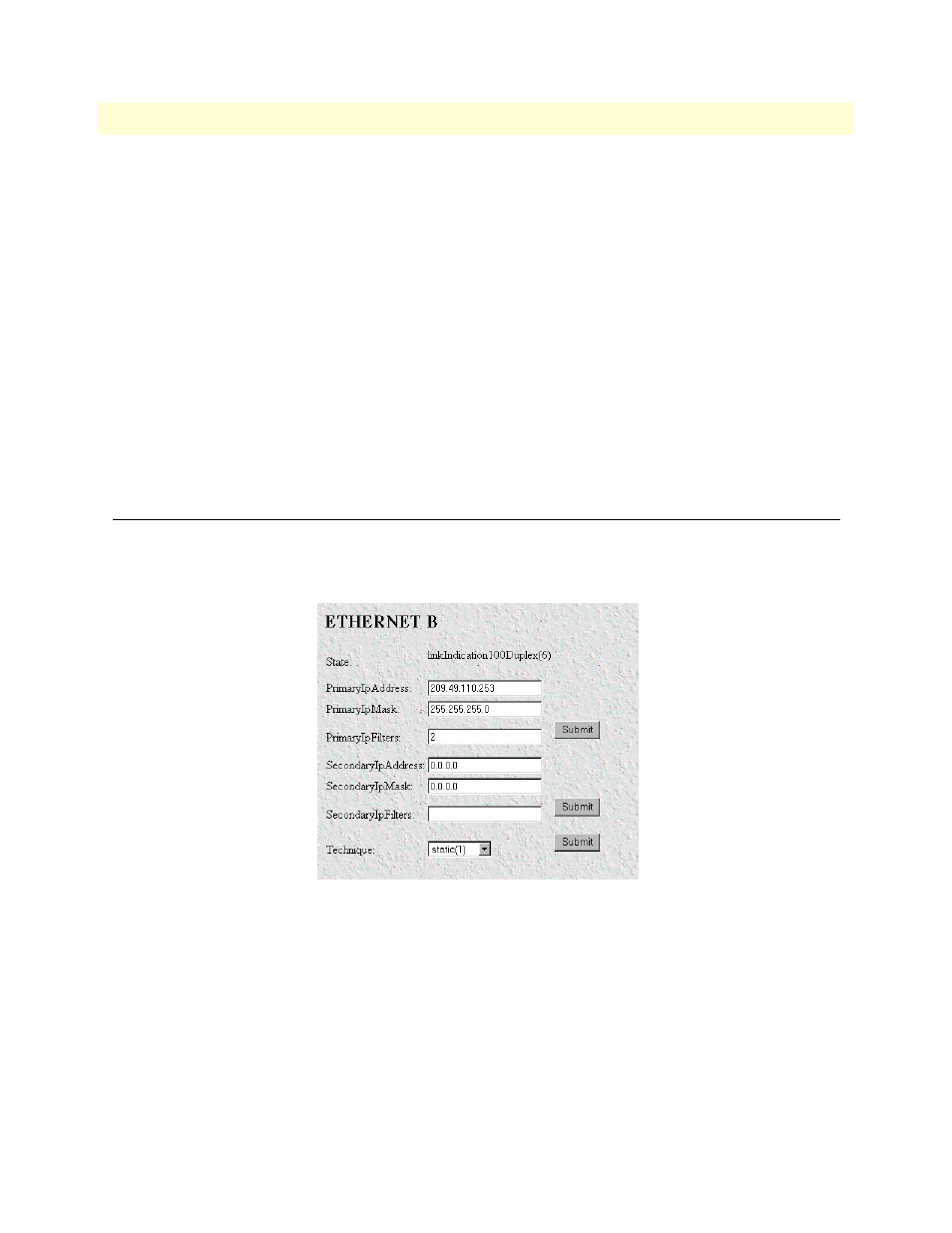

Figure 67. Ethernet Modify Window
State (boxEtherBState)
Indicates the state of the ethernet interface. The following states are valid:
• notInstalled(0) - ethernet interface is not physically present
• noLinkIndication(1) - no cable is connected to ethernet interface. Hub is not seen.
• adminOff(2) - Ethernet interface has been turned off by setting technique to disable
• linkIndication10M(3) - Ethernet is 10M
• linkIndication10Duplex(4) - Ethernet is 10M full duplex
