WAN Configuration—Modify 269
Model 3120 RAS Administrators’ Reference Guide 22 • T1/E1 Link
WAN Configuration—Modify
Clicking on the Configuration link in the T1/E1 Link Activity window displays the WAN Configuration—
Modify window. From this window, you can change line interface settings, signalling settings, test settings, and
change the T1/E1 pulse shapes.

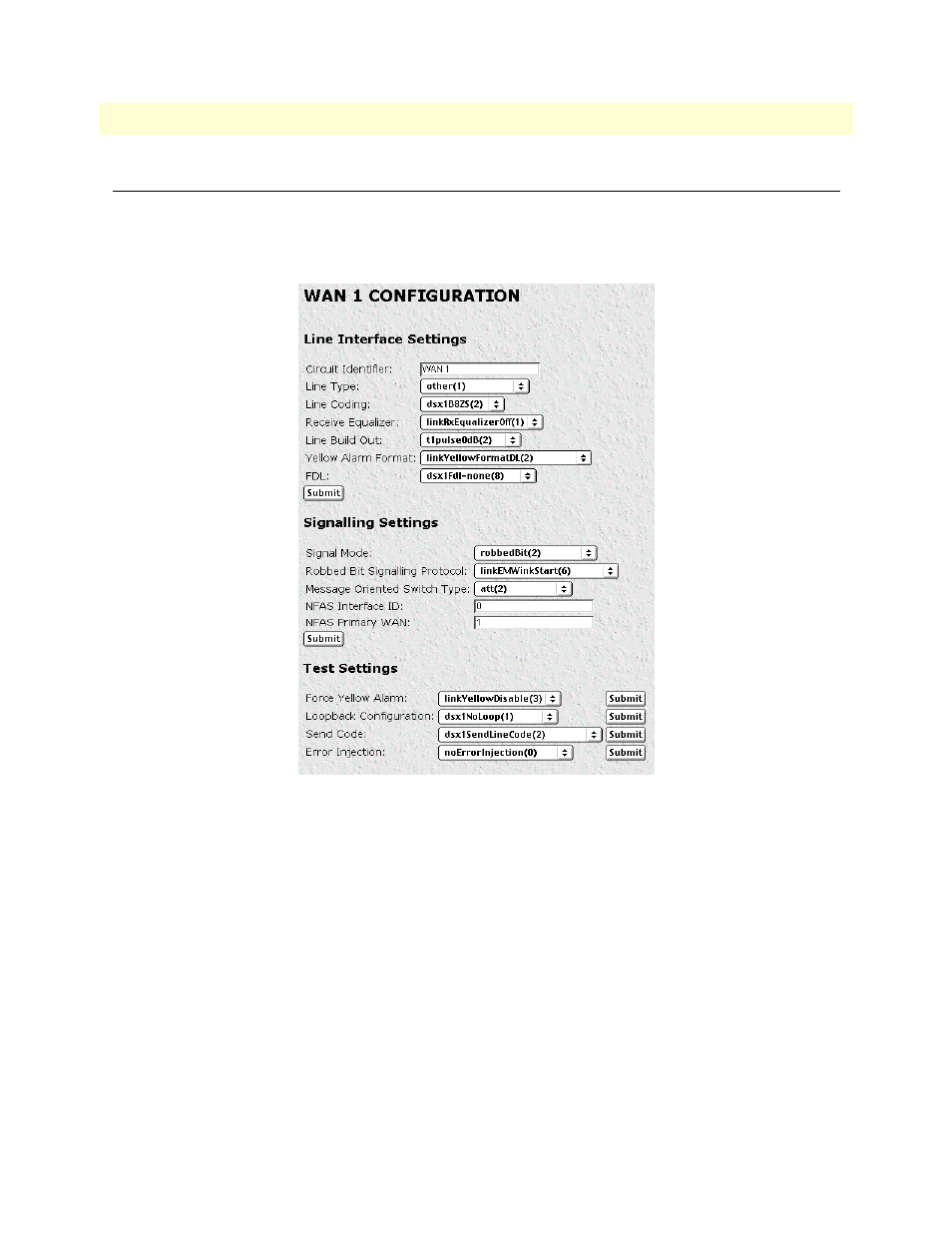

Figure 108. WAN Circuit Configuration—Modify window
Note Use the DAX menu to view clock source for the Model 29XX series
access servers.
Line Interface Settings
This portion of the WAN Configuration window contains information described in the following sections.
Circuit ID (dsx1CircuitIdentifier)
This variable contains the transmission vendor’s circuit identifier, for the purpose of facilitating
troubleshooting.
Line Type (dsx1LineType)
This variable indicates the type of DS1 Line implemented on this circuit. The type of circuit affects the num-
ber of bits per second that the circuit can reasonably carry, as well as the interpretation of the usage and error
statistics. The values, in sequence, are:
