21 • System Log Model 3120 RAS Administrators’ Reference Guide
252 Introduction
Introduction
The System Log window (see figure 100) displays the results from the system-wide error reporting utility. The
object parameters in the system log are all Patton Enterprise MIB object identifiers.

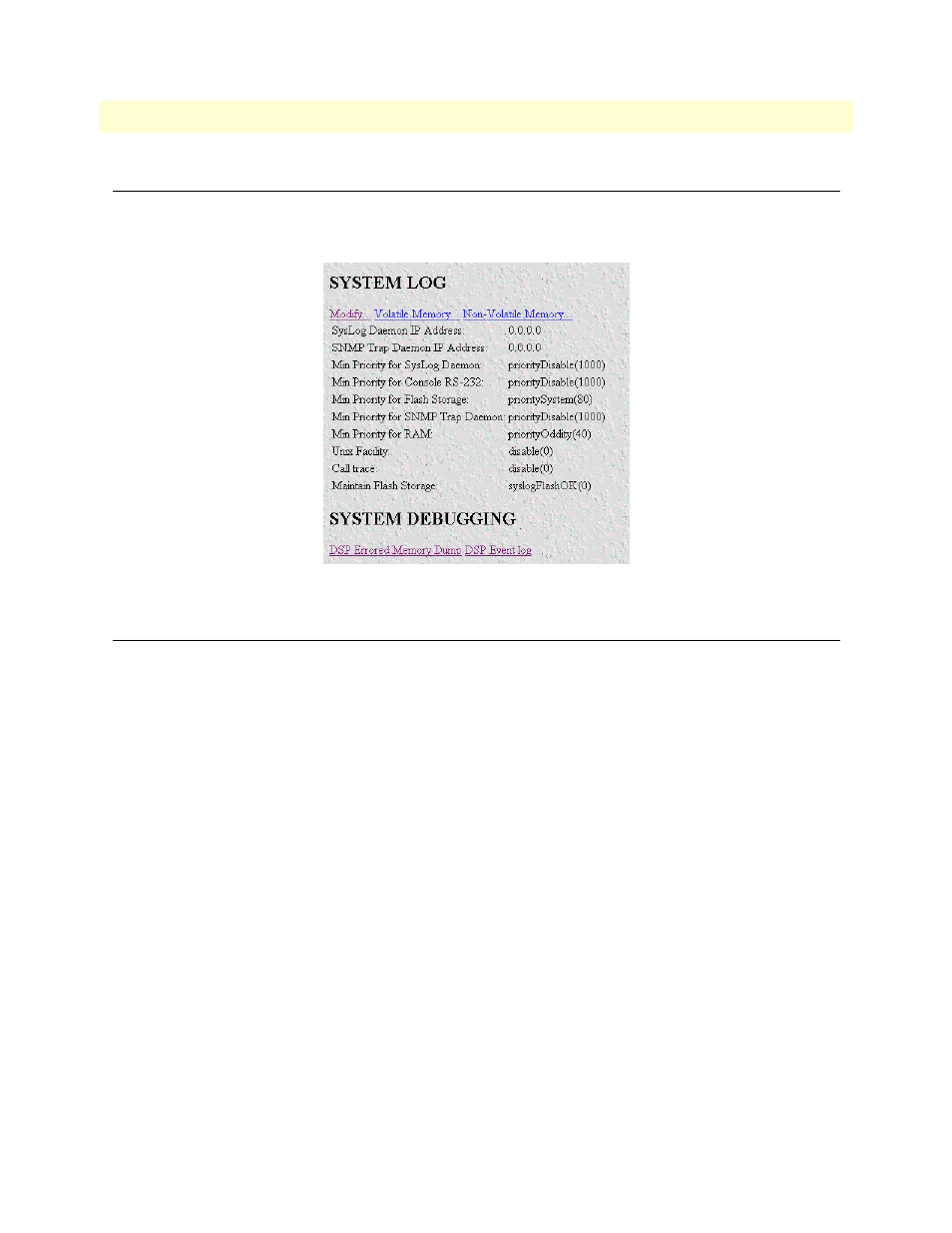

Figure 100. System Log main window
System Log Main Window
Besides displaying the results from the system-wide error reporting utility, the System Log main window also
contains links to the following:
• Modify—Clicking on this link displays syslog and SNMP trap daemon locations, priority and maintenance
information (see “System Log—Modify” on page 253)
• Volatile Memory—Clicking on this link displays timestamp and stored system log message information
(“System Log—Volatile Memory” on page 257)
• Non-Volatile Memory—Clicking on this link displays non-volatile RAM messages for each 10ms time
stamp (see “System Log—Non-Volatile Memory” on page 258)
• DSP Errored Memory Dump—Clicking on this link exports or "dumps" the DSP memory to a text file.
The memory dump gives those troubleshooting the RAS information about registers and the state of the
DSPs at the moment of the dump. It is intended for debugging purposes.
• DSP Event Log—Clicking on this link exports or “dumps” the last 100 DSP events to a text file. It is
intended for debugging purposes
Click on System Log under the Configuration Menu to display the System Log main window.
