RIP Version 2—Configuration
The RIP Version 2 Configuration window (see figure 93) shows objects for each subnet address including
authentication method, RIP Version 1 or Version 2 compatibility, and metric value.

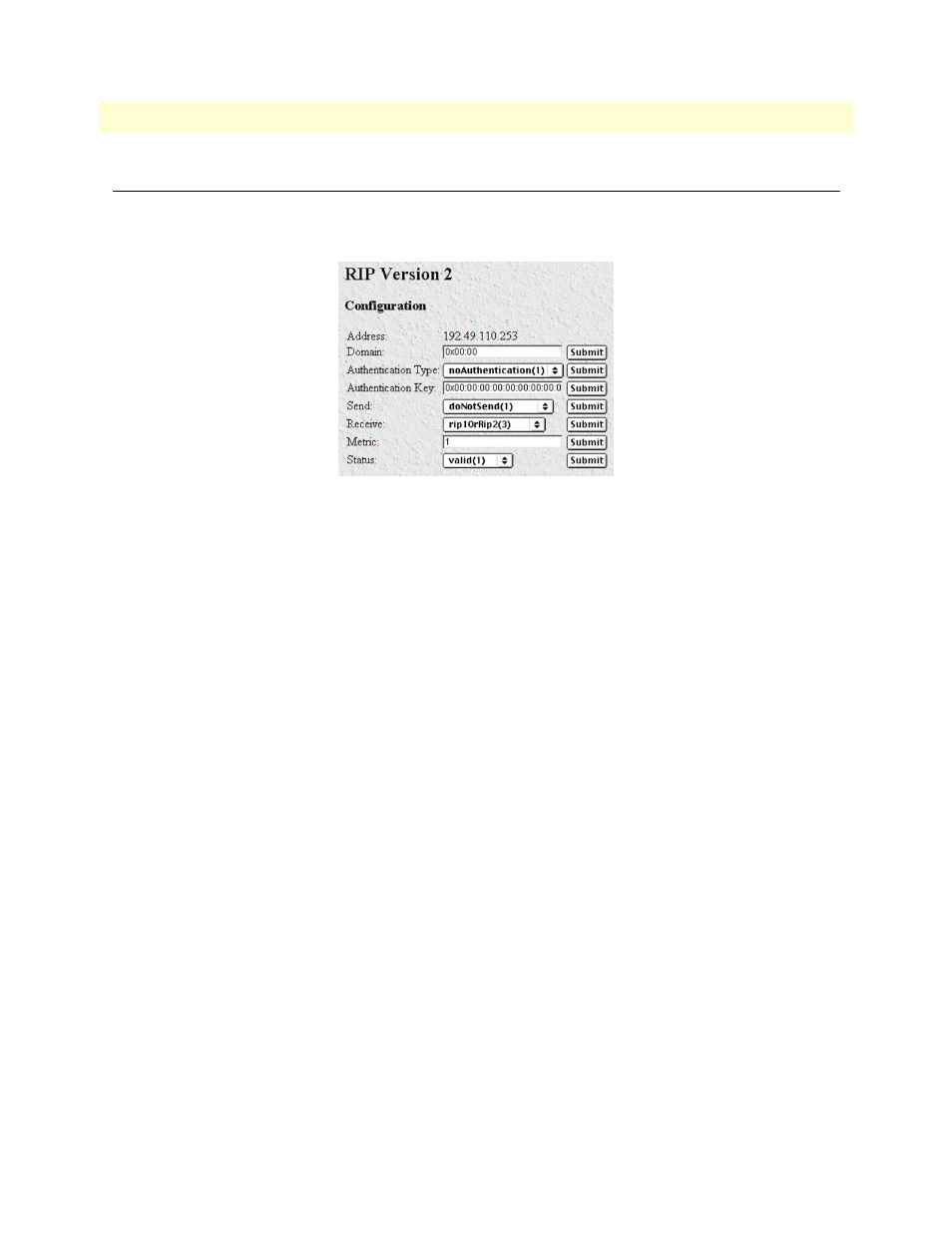

Figure 93. RIP Version 2—Statistics Configuration window
Address (rip2IfConfAddress)
The IP address of the interface on the access server.
Domain (rip2IfConfDomain)
Value inserted into the Routing Domain field of all RIP packets sent on this interface.
Authentication Type (rip2IfConfAuthType)
The type of Authentication used on this interface.
• noAuthentication (1)
• simplePassword (2)
Authentication Key (rip2IfConfAuthKey)
The value to be used as the Authentication Key whenever the corresponding instance of rip2IfConfAuthType
has a value other than authentication. A modification of the corresponding instance of rip2IfConfAuthType
does not modify the rip2IfConfAuthKey value. If a string shorter than 16 octets is supplied, it will be left-jus-
tified and padded to 16 octets, on the right, with nulls (0x00).
Reading this object always results in an OCTET STRING of length zero; authentication may not be bypassed
by reading the MIB object.
Send (rip2IfConfSend)
The types of RIP packets the router sends on this interface.
• doNotSend (1)
• ripVersion1 (2)—Send RIP updates compliant with RFC 1058
• rip1Compatible (3)—Broadcast RIP-2 updates using RFC 1058 route subsumption rules
• ripVersion2 (4)—Send multicasting RIP-2 updates
