10 • Drop and Insert Model 3120 RAS Administrators’ Reference Guide
142 Introduction
Introduction
The Drop and Insert window (see figure 58) contains setup objects associated with using the access server as a
drop and insert box to an upstream or downstream location.

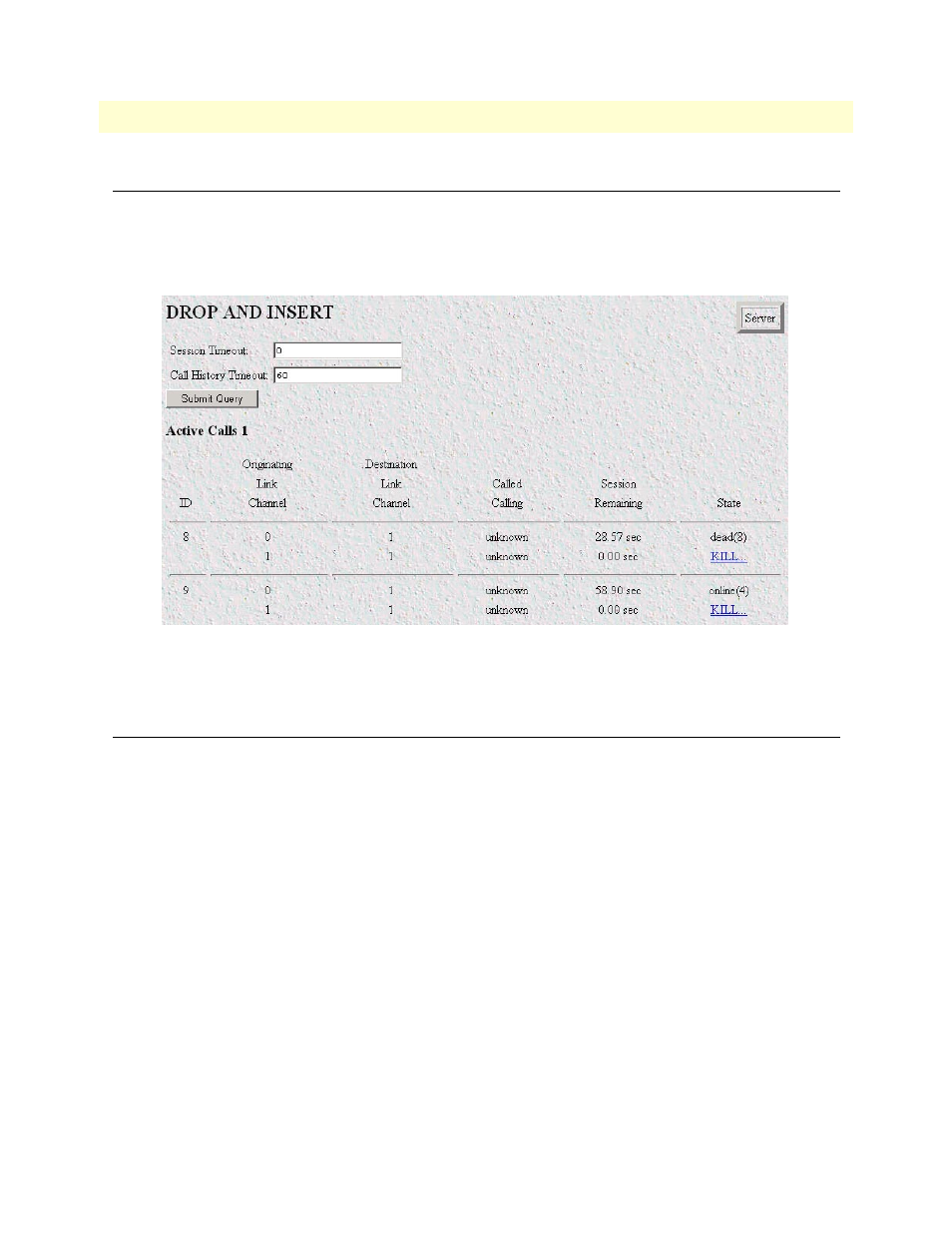

Figure 58. Drop and Insert window
Click on Drop and Insert under the Configuration Menu to display the Drop and Insert main window.
Drop and Insert main window
This Drop and Insert window contains channel information for each unique session ID. If there are no drop
and insert connections to the access server, this screen will be blank.
Session Timeout (drSessionTimeout)
This is the maximum time (in minutes) which a connection is allowed to be maintained. After this time the
connection will be terminated, even if there is active traffic on the connection. A setting of 0 disables the time-
out.
Call History Timeout (drLingerTime)
Number of seconds a MIB entry remains in the Active table will remain after the call is disconnected.
Active Calls (drActive)
The total number of active calls.
Session ID (dractIndex)
Unique identification of this active call
