Introduction
159
Model 3120 RAS Administrators’ Reference Guide
12 • Ethernet
Introduction
The access server provides management and statistical information in the
Ethernet
window (see figure 68).
Detailed information regarding the SNMP MIB II variables may be downloaded from RFC 1643, Definitions
of Managed Objects for the Ethernet-like Interface Types.
Click on
Ethernet
under the
Configuration Menu
to display the
Ethernet m
ain window.
The
Ethernet
main window displays information about the configuration of each Ethernet interface including
IP addresses, subnet masks, and state of the ethernet link.
Each Ethernet interface contains the following links:
•
Statistics
link - Clicking on the
Statistics
link takes you to the page where you can see the statistics on the
ethernet interface. For more information about the
Statistics
page, refer to “Ethernet Statistics” on
•
Modify
- Clicking on the
Modify
link takes you to the page where you can change the configuration of your
ethernet interface. For more information about modifying Ethernet settings, refer to “Ethernet A Modify
Window” on page 162.

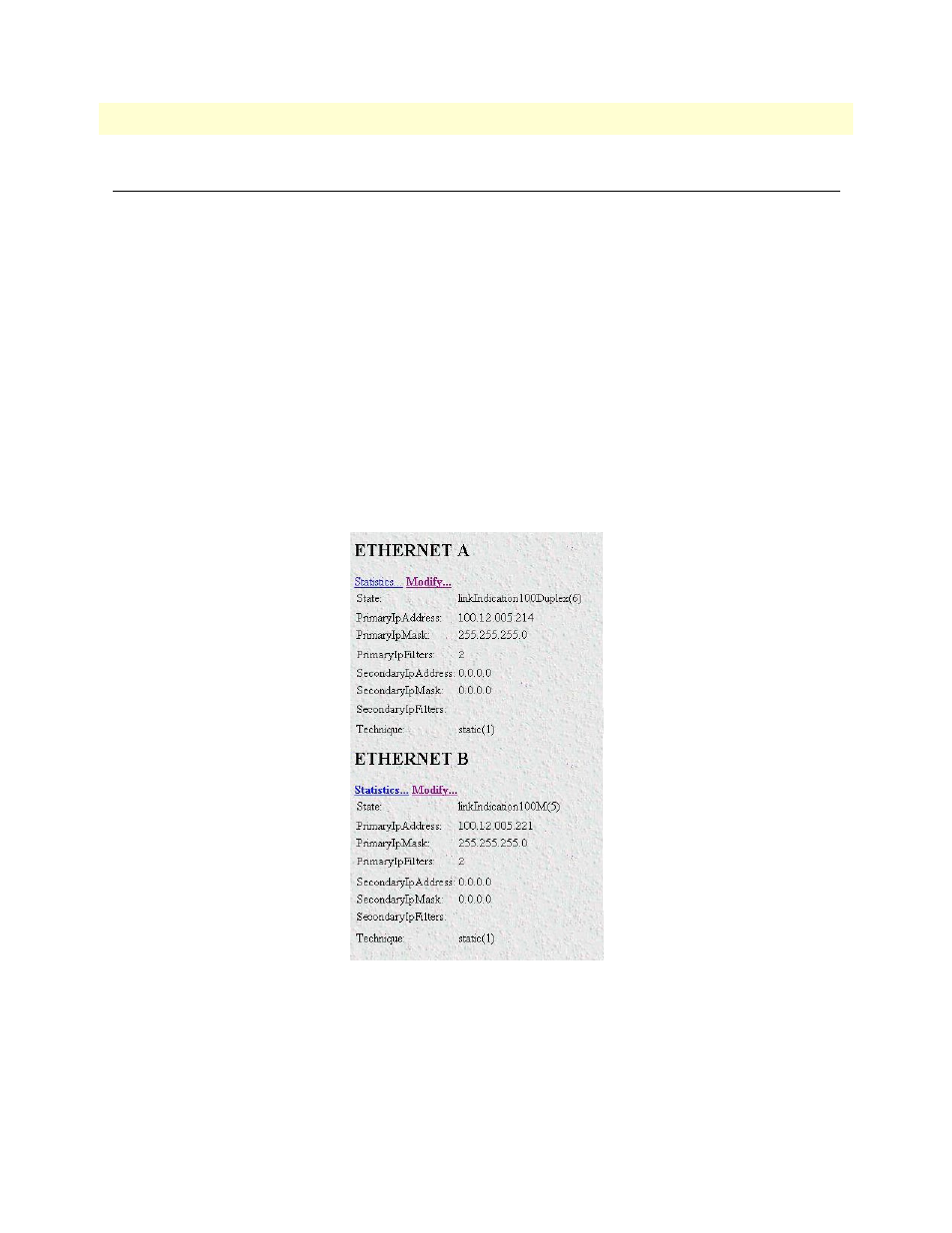

Figure 65. Ethernet Main Window
