16 • IP Model 3120 RAS Administrators’ Reference Guide
194 Introduction
Introduction
The IP (Internet Protocol) window lists IP configuration statistics and parameters, and enables you to modify
IP settings.
All items described in this chapter are defined in RFC 1213: Management Information Base for Network Man-
agement of TCP/IP-based internets: MIB-II. As specified in the RFC, implementation of the IP, TCP, UDP, and
ICMP MIB groups are required for all TCP/IP networks.

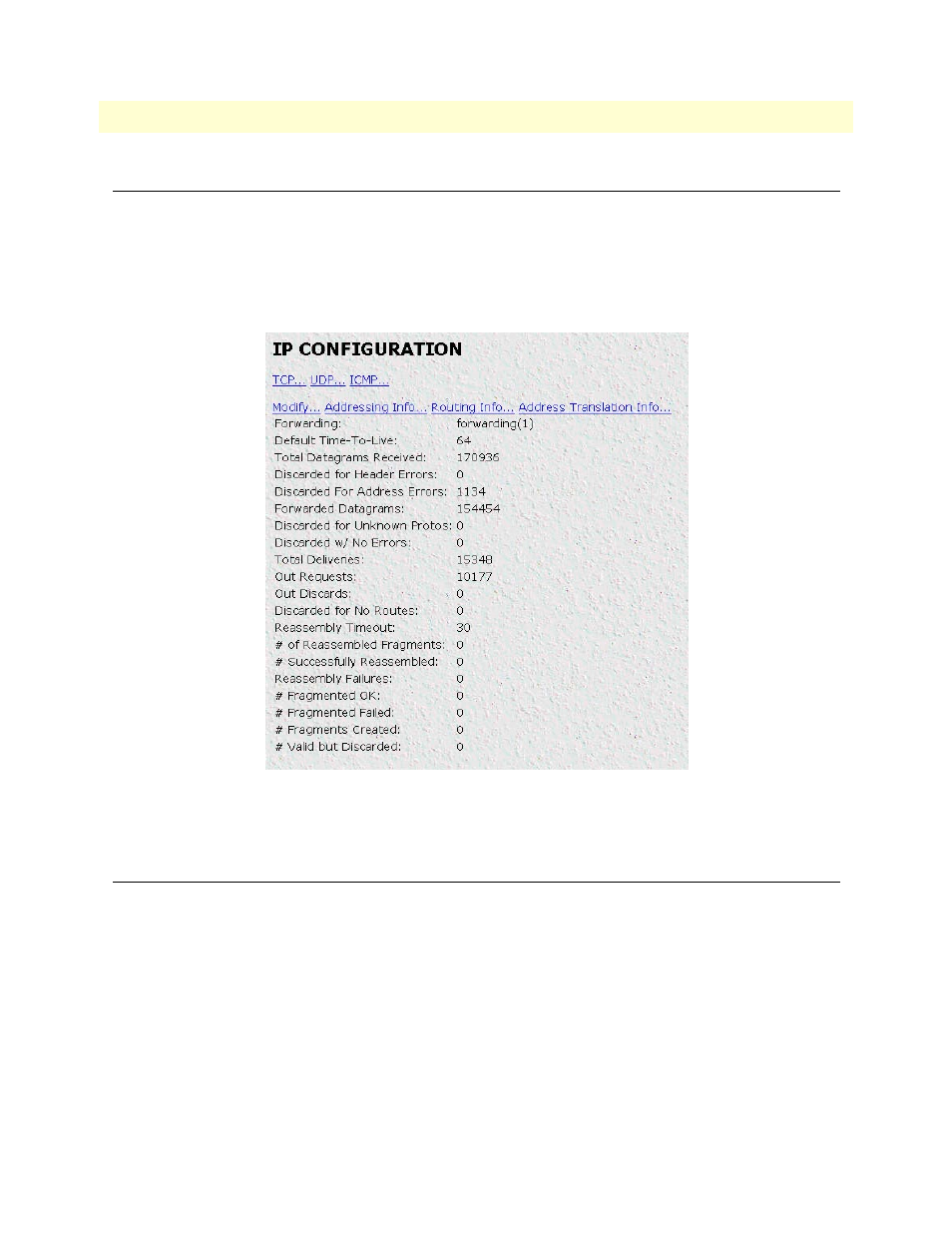

Figure 77. IP main window
Click on IP under the Configuration Menu to display the IP window.
IP main window
The IP main window contains basic IP configuration parameters and statistics, and it has the following links to
windows that will enable you to modify IP parameters and view IP statistics:
• TCP—Displays information about the TCP protocol such as TCP segments received and sent, and remote
and local TCP connections. (See “TCP” on page 198.)
• UDP—Displays information about the UDP protocol such as the number of UDP datagrams sent and
received. (See “UDP” on page 201.)
• ICMP—Displays information about the ICMP protocol such as the number of echo replies sent. (See
“ICMP” on page 202.)
