5 • Authentication Model 3120 RAS Administrators’ Reference Guide
46 Modify Static User

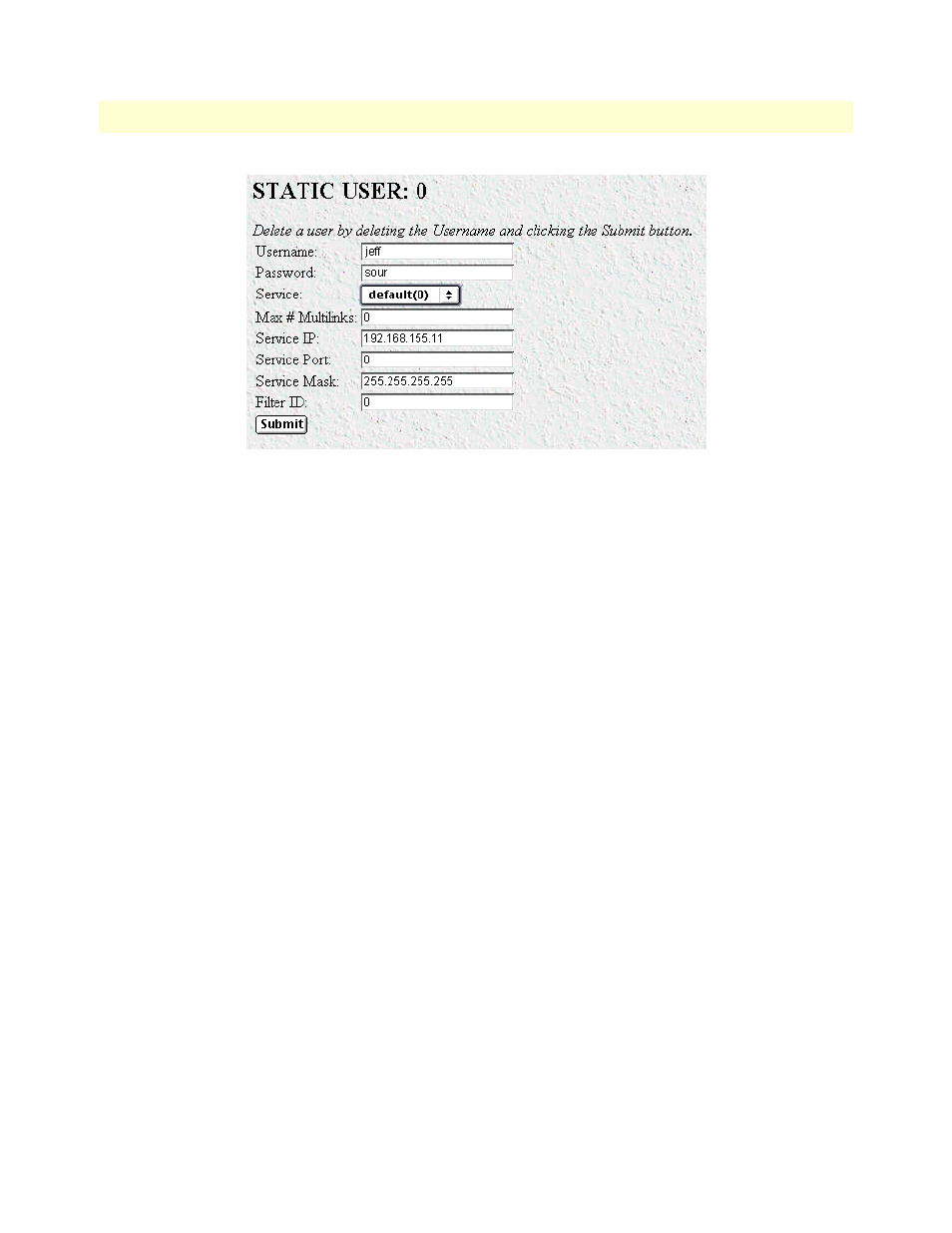

Figure 19. Static User settings window
Service IP (suServiceIP)
This is the IP of the RLogin or Telnet host, or the static IP address assigned to the user. This is determined by
the option selected in
Service (see “Service (suService)” on page 44).
Service Port (suServicePort)
This is the port number to connect to the service host. If the number is 0, the access server will use the default
values for Telnet (port number 23) and RLogin (port number 513).
Note After you have submitted all changes, click on the HOME link in the
Configuration Menu . Once there, click on the Record Current
Configuration button (located under Immediate Actions ) to save the
changes to FLASH memory on the access server.
All changes made to the running configuration must be saved to
FLASH memory. Failure to do so will cause all configuration infor-
mation to be lost the next time the access server is re-booted.
Service Mask (suServiceMask)
This parameter defines the IP mask of the user.
Filter ID (suFilterId)
This is the ID of the filter assigned to the static user. A filter controls packets that can be sent or received by the
dial-in user to which it is applied. Only one filter can be assigned to a user defined in the static user authentica-
tion database.
Note Explicitly assigning a filter to a static user will keep default dial-in
filters from being applied.
