Configuring the Switch
3-230
3
Web – Click IGMP Snooping, IGMP Filter Configuration. Create a profile group by
entering a number in the text box and clicking Add. Enable the IGMP filter status,
then click Apply.

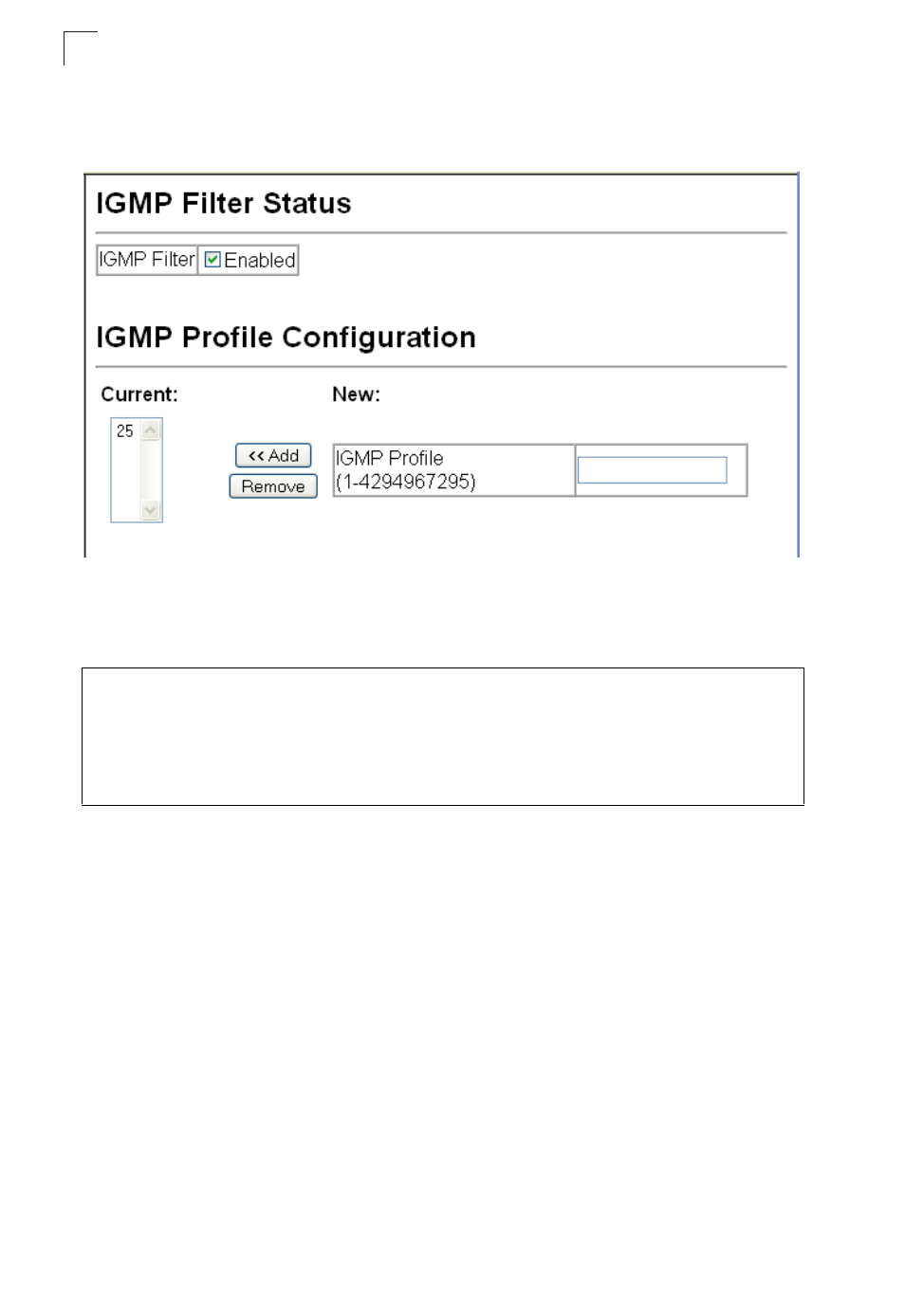

Figure 3-140 Enabling IGMP Filtering and Throttling
CLI – This example enables IGMP filtering and creates a profile number. It then
displays the current status and the existing profile numbers.
Configuring IGMP Filter Profiles
When you have created an IGMP profile number, you can then configure the
multicast groups to filter and set the access mode.
Command Usage
• Each profile has only one access mode; either permit or deny.
• When the access mode is set to permit, IGMP join reports are processed when a
multicust group falls within the controlled range. When the access mode is set to
deny, IGMP join reports are only processed when the multicast group is not in the
controlled range.
Command Attributes
• Profile ID – Selects an existing profile number to configure. After selecting an ID
number, click the Query button to display the current configuration.
• Access Mode – Sets the access mode of the profile; either permit or deny.
(Default: Deny)
Console(config)#ip igmp filter 4-302
Console(config)#ip igmp profile 19 4-302
Console(config)#end
Console#show ip igmp profile
4-307
IGMP Profile 19
IGMP Profile 25
Console#
