Page 107: Datasheet 8.5.4 pio reads

Two Port 10/100 Managed Ethernet Switch with 16-Bit Non-PCI CPU Interface

Datasheet

SMSC LAN9311/LAN9311i

107

Revision 1.4 (08-19-08)

DATASHEET

8.5.4

PIO Reads

PIO reads can be used to access System CSR’s or RX Data and RX/TX Status FIFOs. PIO reads can
be performed using Chip Select (nCS) or Read Enable (nRD). A PIO Read cycle begins when both
nCS and nRD are asserted. Either or both of these control signals must de-assert between cycles for
the period specified in

Table 15.8, “PIO Read Cycle Timing Values,” on page 448

. The cycle ends when

either or both nCS and nRD are de-asserted. They may be asserted and de-asserted in any order.
Read data is valid as indicated in the functional timing diagram in

Figure 8.3

The endian select signal (END_SEL) has the same timing characteristics as the address lines.

Please refer to

Section 15.5.4, "PIO Read Cycle Timing," on page 448

for the AC timing specifications

for PIO read operations.

Note:

Some registers have restrictions on the timing of back-to-back write-read cycles. Please refer
to

Section 8.5.2

for information on these restrictions.

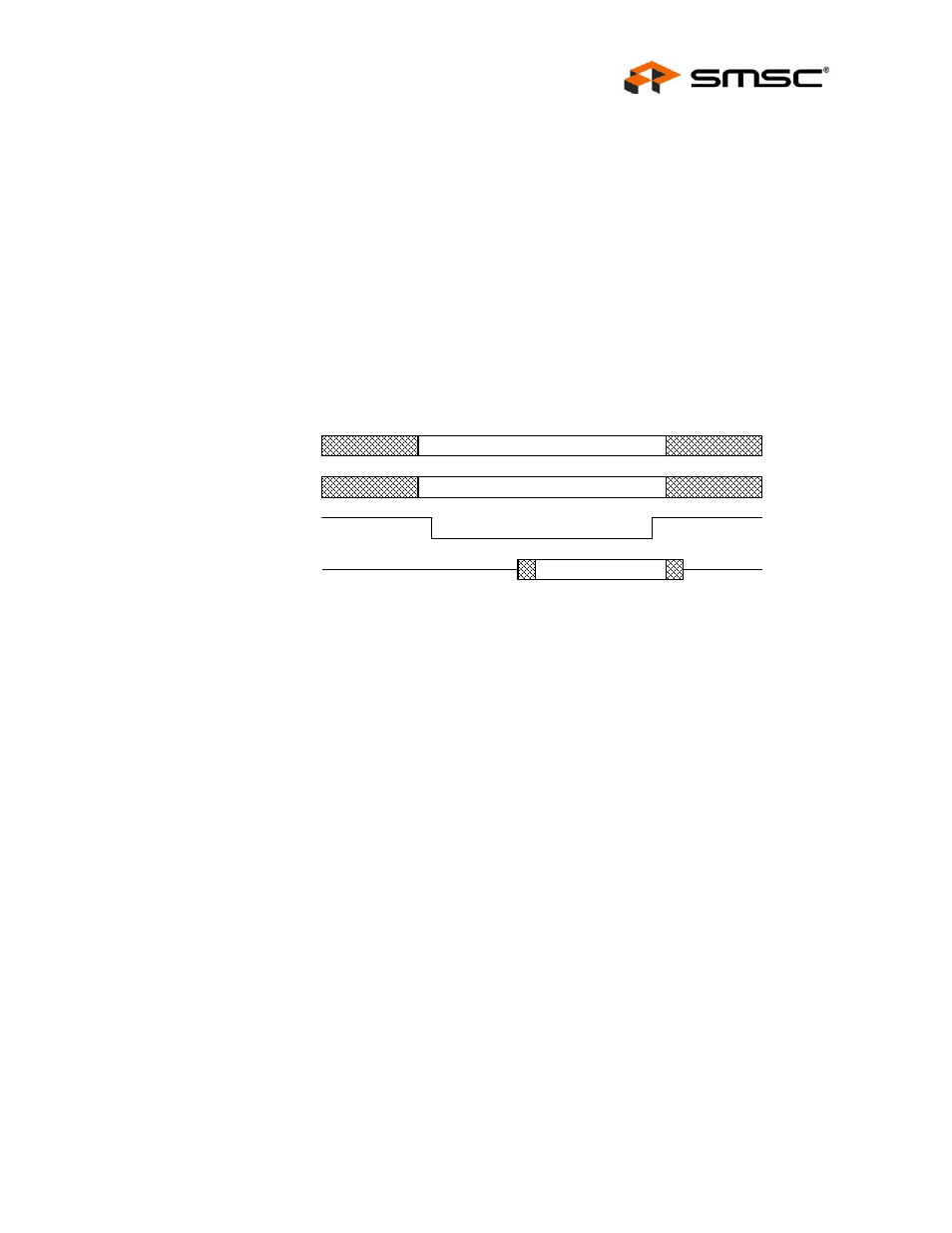

Figure 8.3 Functional Timing for PIO Read Operation

VALID
