7.6.3

MDIO AC Timing

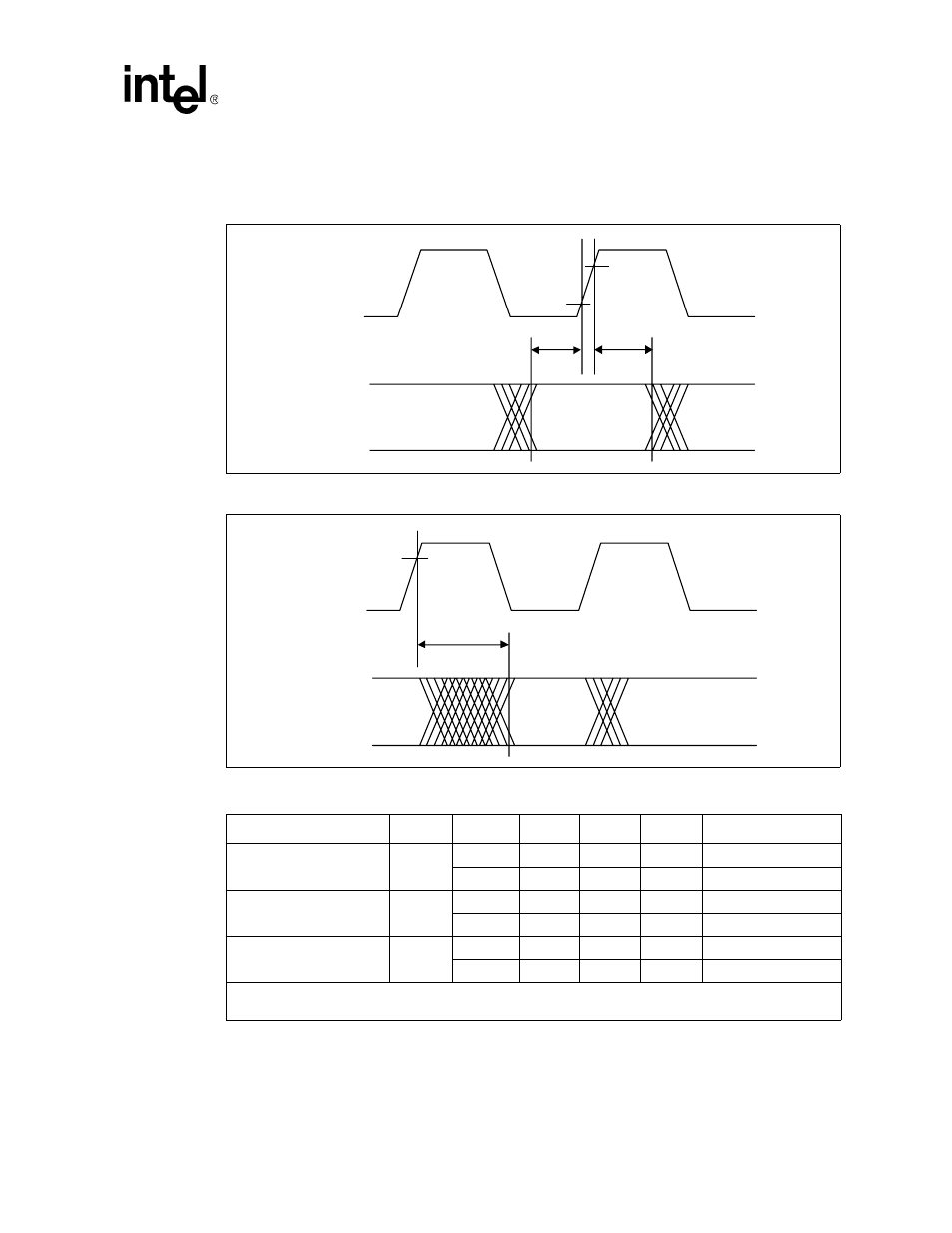

Figure 43. MDIO Write Timing Diagram

Figure 44. MDIO Read Timing Diagram

Table 52. MDIO Timing Parameters

Parameter

Symbol

Min

Typ

1

Max

Units

Test Conditions

MDIO Setup before MDC.

t1

10

–

–

ns

MDC = 17.8 MHz

10

–

–

ns

MDC = 2.5 MHz

MDIO Hold after MDC.

t2

10

–

–

ns

MDC = 17.8 MHz

10

–

–

ns

MDC = 2.5 MHz

MDC to MDIO Output delay

t3

0

–

42

ns

MDC = 17.8 MHz

0

–

300

ns

MDC = 2.5 MHz

1. Typical values are at 25

o

C and are for design aid only; not guaranteed and not subject to production

testing.

t1

MDC

MDIO

t2

V

MAX

V

MIN

t3

MDC

MDIO

V

MA X
