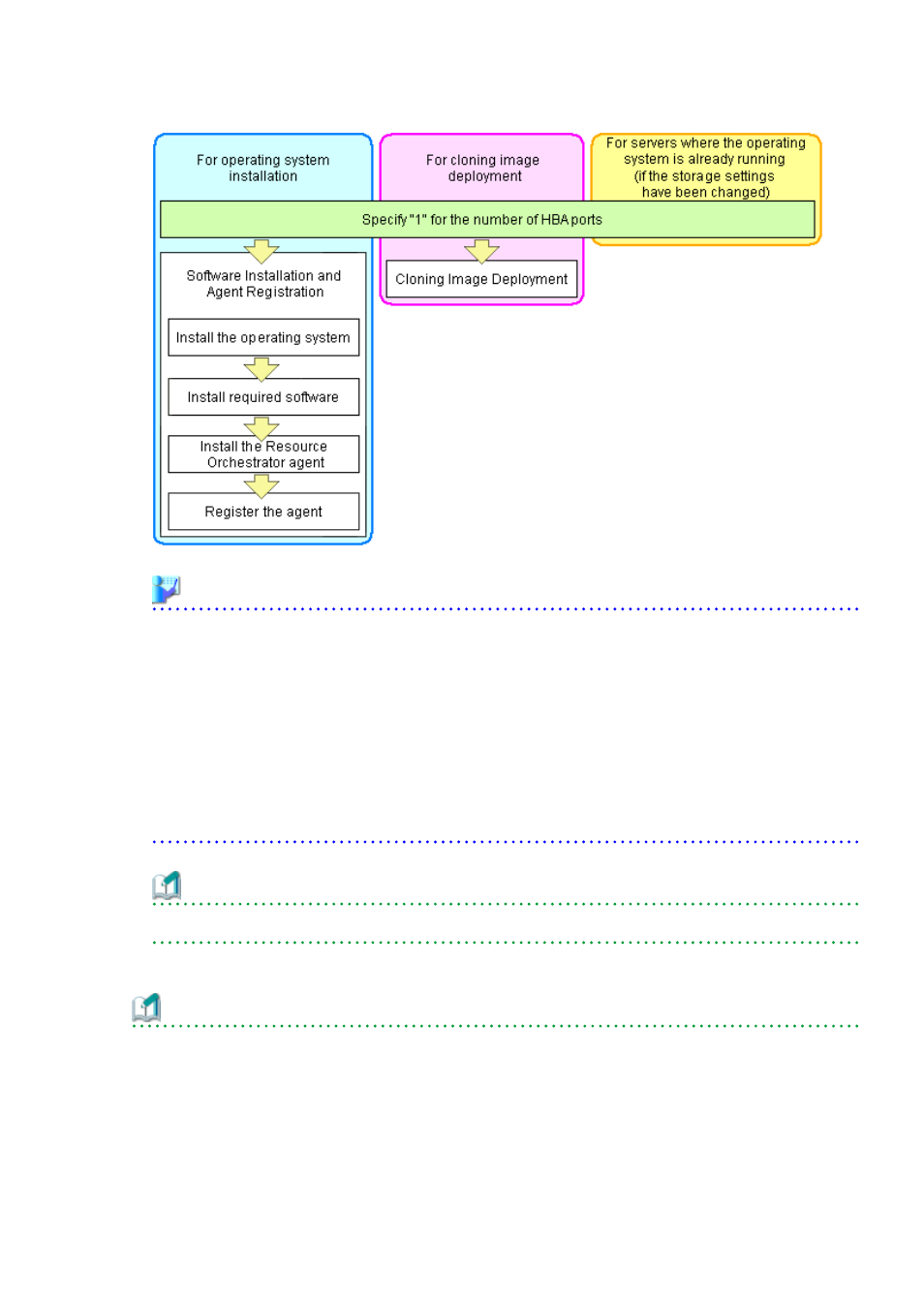

Figure 7.4 Procedures for Multi-path Configurations

Example

For a server with two ports, WWNs could be configured as follows.

WWNN value provided by "I/O Virtualization Option": 20:00:00:17:42:51:00:00

Values to set in the [HBA address rename settings] dialog

"WWNN" value 20:00:00:17:42:51:00:00
"HBA port number" on board: 2

Values actually set by the admin server on the HBA (WWPNs are generated automatically)

WWNN value for ports 1 and 2 of the HBA : 20:00:00:17:42:51:00:00

WWPN value for HBA port 1 : 21:00:00:17:42:51:00:00

WWPN value for HBA port 2 : 22:00:00:17:42:51:00:00

Information

WWN settings are applied to managed servers during server startup.

3.

Check the [Restart the server] checkbox if the server is to be restarted.

Information

Select server restart in the following cases.

-

When installing an operating system immediately after performing the above settings

Insert the operating system installation CD in the target server and select server restart. Once the server has been restarted, its
WWN settings are applied and the operating system installation starts.

-

When an operating system is already running (if changing storage settings)

Click to restart the target server and apply its WWN settings.

- 43 -
