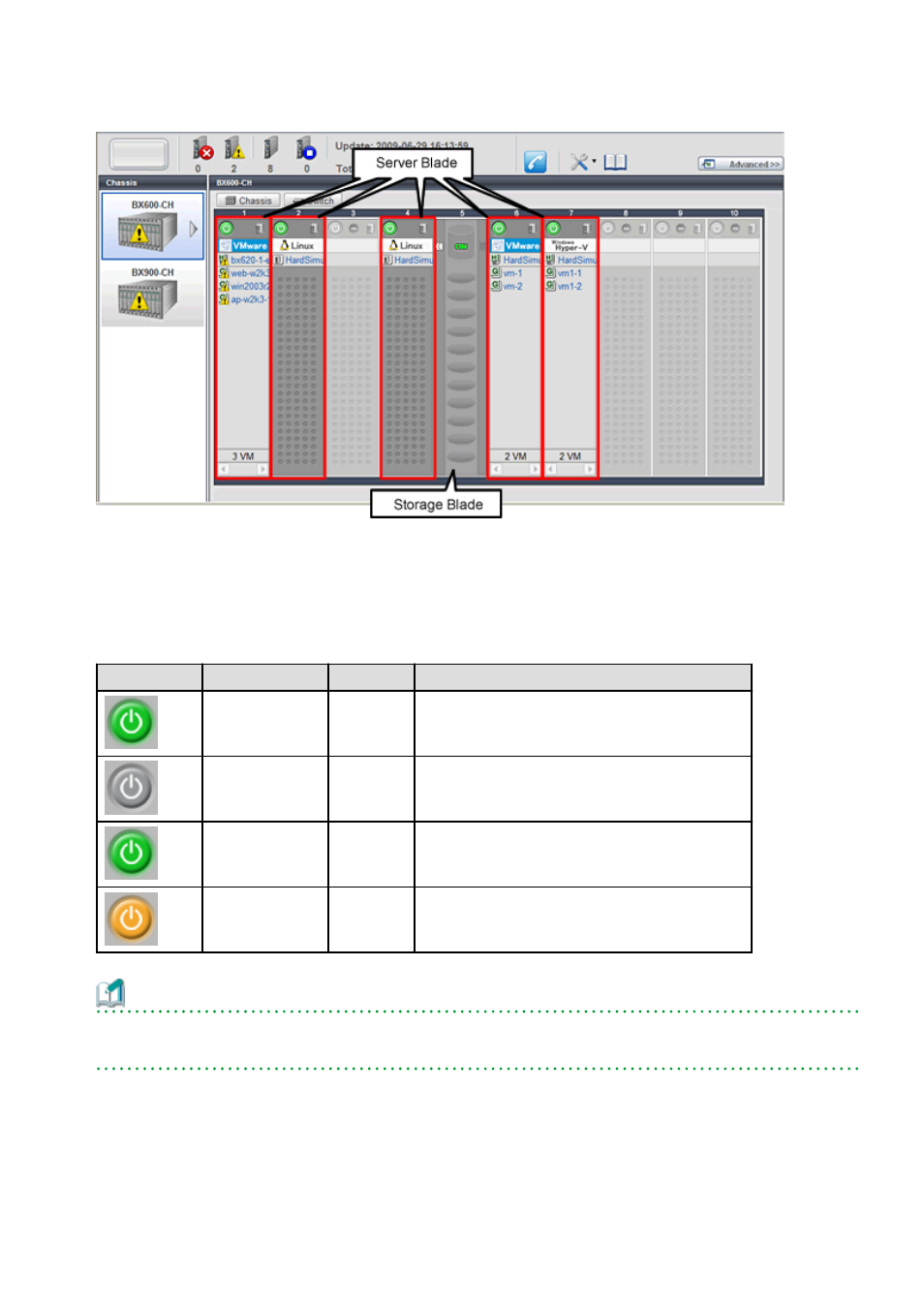

Figure 6.3 Blade Panel: Resource List

Server Blade

A power button is displayed in the upper-part of each server blade.
This power button is used to represent the power status of each server, as shown below.

Table 6.7 Server Blade Power Buttons

Power button

Color

Status

Meaning

Green (lit)

Power ON

Power ON status.

Gray (not lit)

Power OFF

Power OFF status.

Green (blinking)

Power ON
in progress

Power ON or reboot in progress.

Orange (blinking)

Power OFF
in progress

Power OFF in progress.

Information

The power status of a server blade can be easily controlled by clicking on its power button.
For details, refer to "

6.4.1 Server Blade

".

A physical server icon is displayed on the right side of the server blade power button.
The table below shows the meanings associated with each physical server icon.
