Appendix A User Interface
Resource Orchestrator includes two graphical user interfaces: the ROR console and BladeViewer.
This appendix provides an overview of the ROR console.
For details on how to open and close the ROR console, refer to "Chapter 3 Login to the ROR Console" in the "Setup Guide VE ".
For details on BladeViewer, refer to "
Chapter 6 BladeViewer ".
A.1 ROR Console
This section explains how the [Resource] tab of the ROR console is organized.
The [Resource] tab of the ROR console is sometimes referred to as the ROR console.

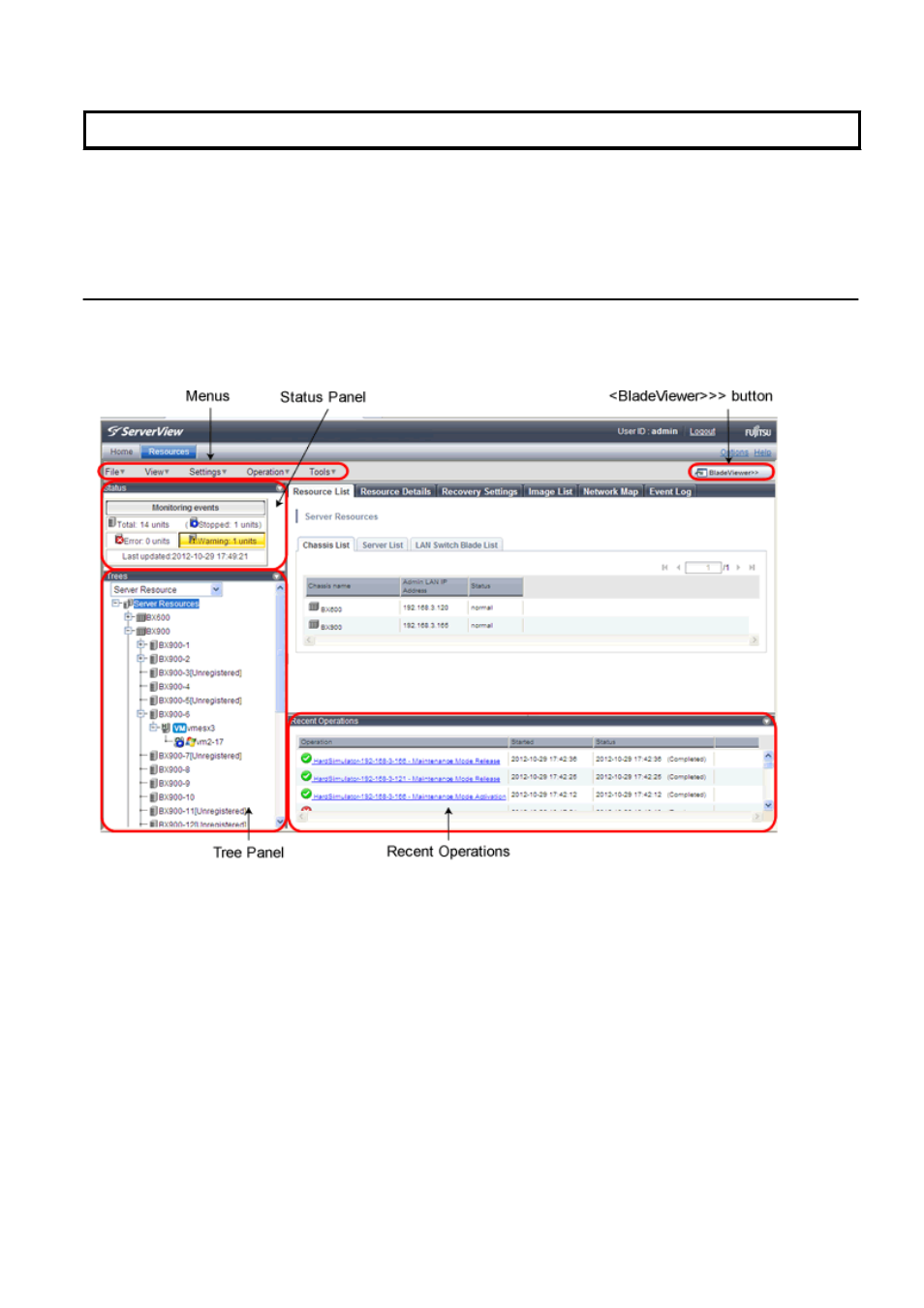

Figure A.1 ROR Console
Menus
Operations can be performed either from the menu bar or popup menus.
Status Panel
The Status Panel displays the status of managed servers.
If a warning or error event occurs on a managed server, the status monitoring area starts to blink.
Tree Panel
By switching between tree types, it is possible to select from the following 5 types of trees.
Server Resources
The resources below are shown in a tree view. A status icon is displayed over each resource's icon.
- Chassis
- Server
