12

SPARC Enterprise T5120 and T5220 Servers Service Manual • July 2009

Related Information

“LED Overview” on page 21

Rear Panel Components and Indicators
on SPARC Enterprise T5220 Servers

The following figure shows the layout of the I/O ports, PCIe ports, 10 Gbit Ethernet
(XAUI) ports (if equipped) and power supplies on the rear panel.

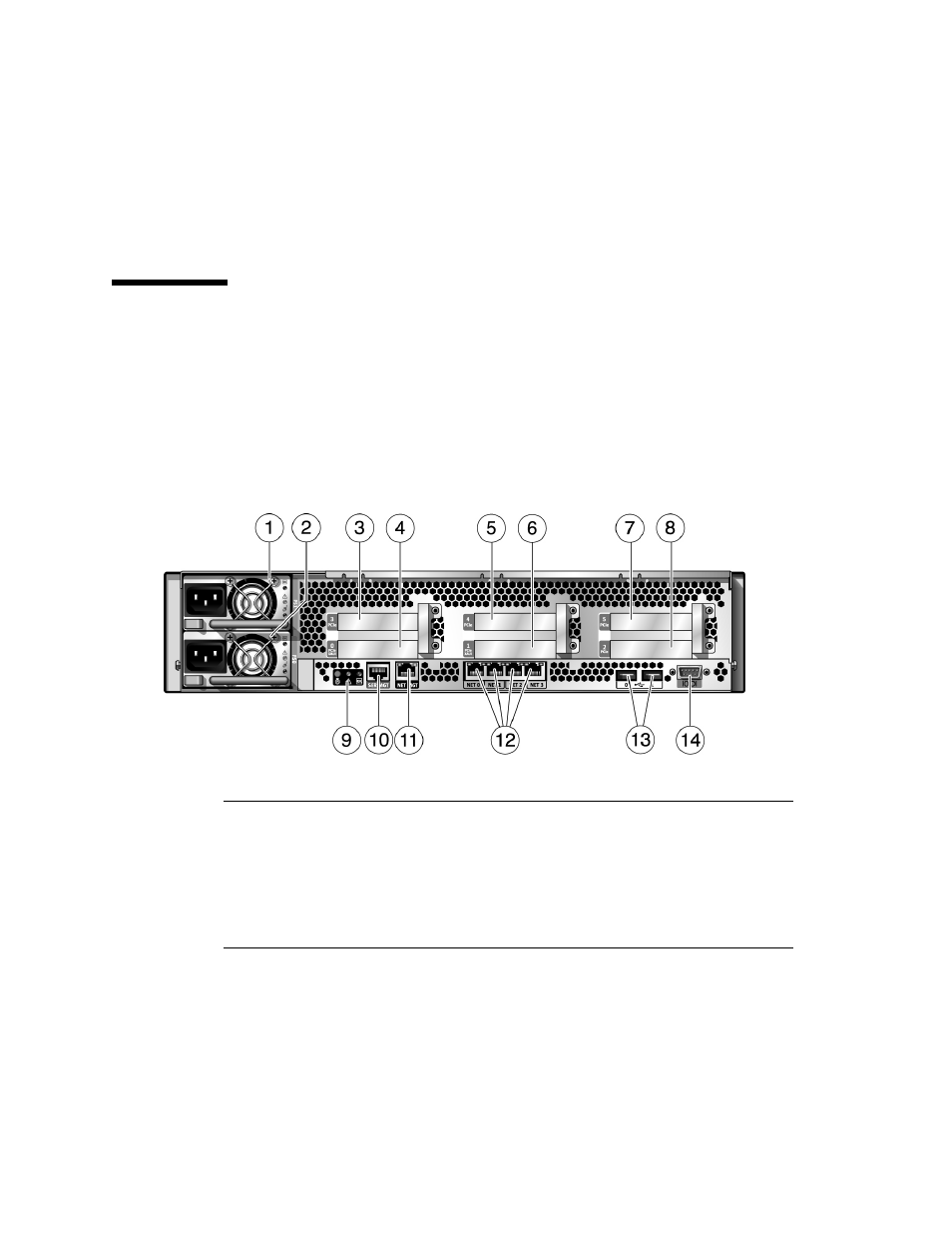

FIGURE:

Rear Panel Components and Indicators on SPARC Enterprise T5220 Servers

Figure Legend

1

PSU 1

8

PCIe 2

2

PSU 0

9

Rear panel status LEDs

3

PCIe 3

10

Serial management port

4

PCIe/XAUI 0

11

Network management port

5

PCIe 4

12

Gigabit Ethernet ports (0, 1, 2, 3)

6

PCIe/XAUI 1

13

USB ports (0, 1)

7

PCIe 5

14

DB-9 serial port
