Servicing Boards and Components 141

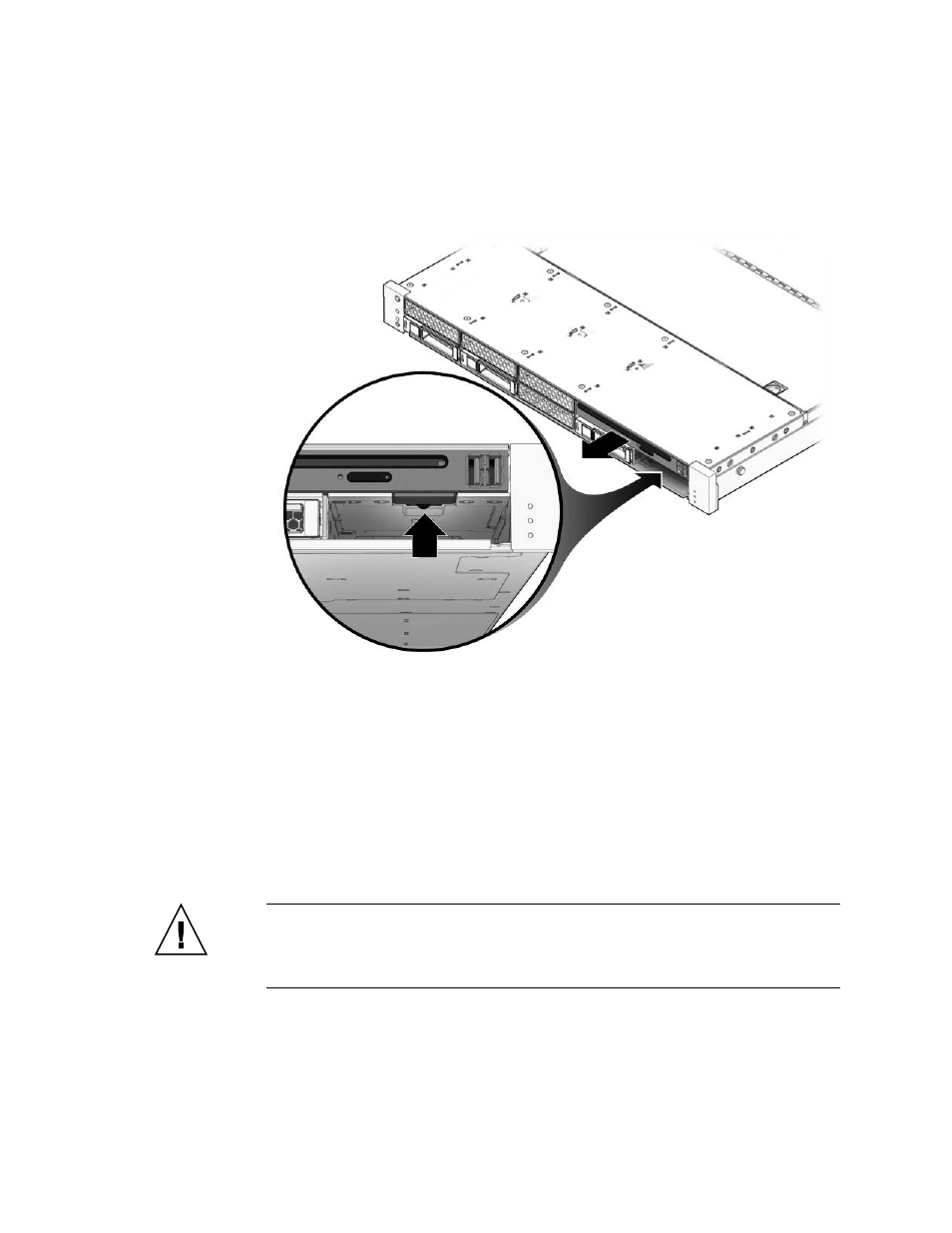

FIGURE: Removing the DVD/USB Module (illustrates removal from a SPARC Enterprise
T5120 server)
6. Slide the DVD/USB module out of the hard drive cage.
7. Place the module on an antistatic mat.
Related Information
■ “Install the DVD/USB Module” on page 141
■ “Servicing the Hard Drive Backplane” on page 152
▼ Install the DVD/USB Module
Caution – Be certain the DVD type and Hard Drive backplane are compatible: both
are SATA or both are PATA types. Special keying will resist installation of a PATA
DVD into a SATA-type DVD bay. Do not force the module if you meet resistance or
you may damage the backplane, DVD/USB Module, or both.
1. Slide the DVD/USB module into the front of the chassis until it seats.
