FUJITSU SPARC T5120 User Manual
Page 195
Servicing Boards and Components
169
FIGURE:

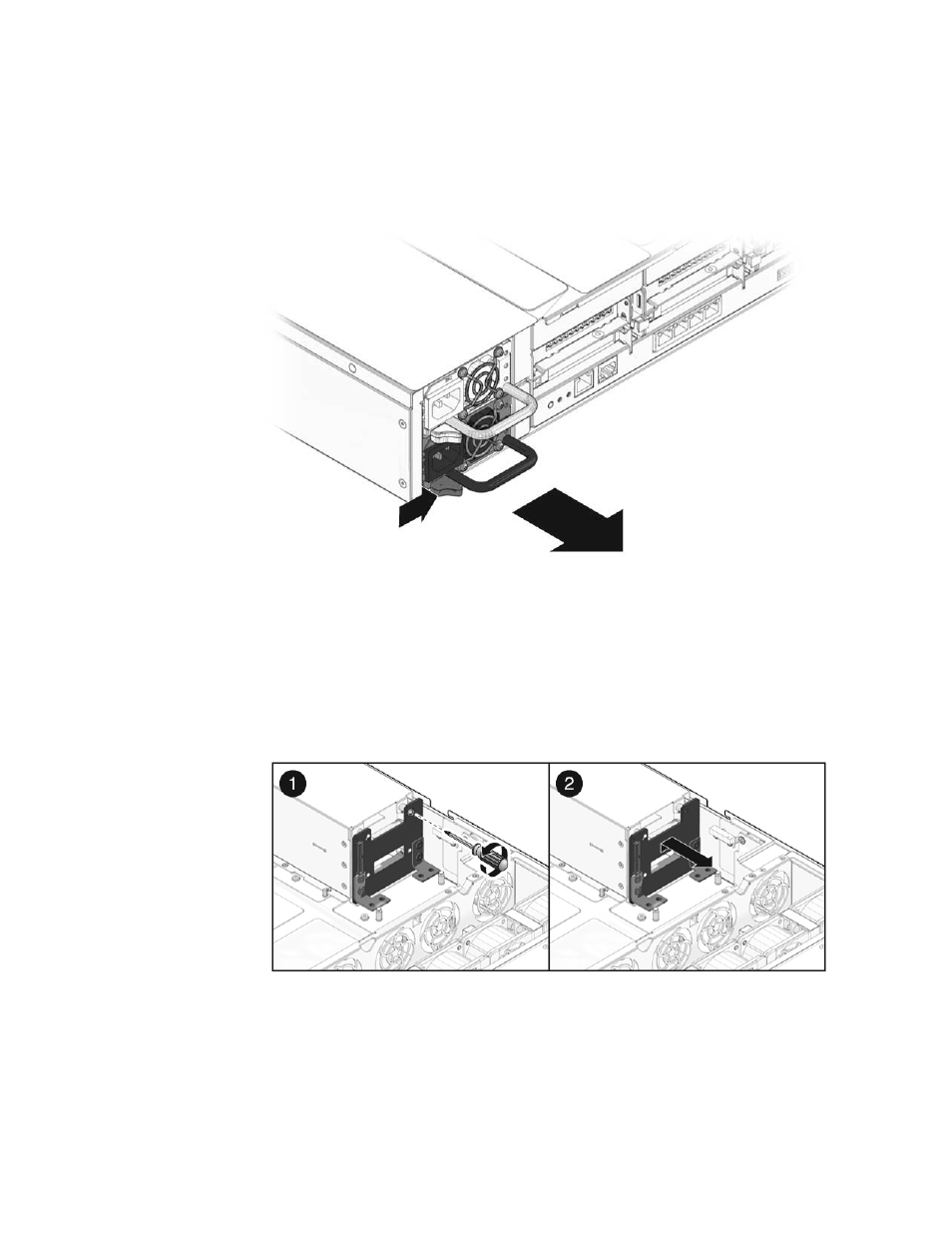

Removing a Power Supply From a SPARC Enterprise T5220 Server
3. Remove the power distribution board.
See
“Remove the Power Distribution Board” on page 161
4. Remove the No. 2 Phillips screw securing the power supply backplane to the
power supply bay.
5. Lift the power supply backplane up and off its standoffs and out of the system.
FIGURE:
Removing a Power Supply Backplane From a SPARC Enterprise T5220 Server
6. Place the power supply backplane on an antistatic mat.
