148

SPARC Enterprise T5120 and T5220 Servers Service Manual • July 2009

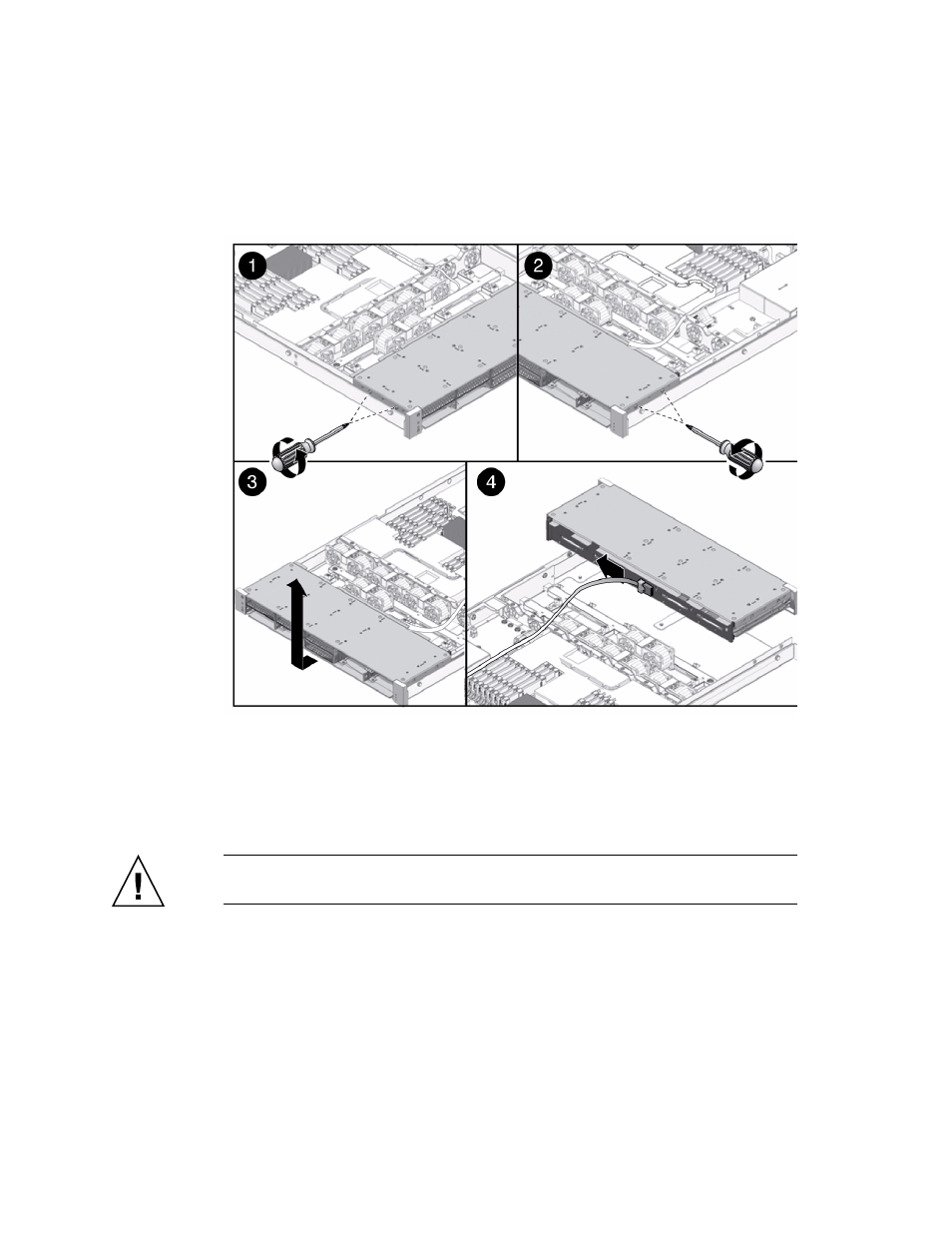

FIGURE:

Removing a Hard Drive Cage (Illustrating Removal From a SPARC Enterprise
T5120 Server)

14. Disconnect the hard drive data cables.

a. Press the release button.

b. Remove the plug from the connector on the hard drive backplane.

See panel 4 in the preceding figure.

Caution –

The hard drive data cables are delicate. Ensure that they are safely out of

the way when servicing the motherboard.

15. Lift the hard drive cage up and out of the chassis.

16. Set the hard drive cage on an antistatic mat.

Related Information

“Install the Hard Drive Cage” on page 149
