Identifying FRUs in SPARC Enterprise T5120 Servers
189

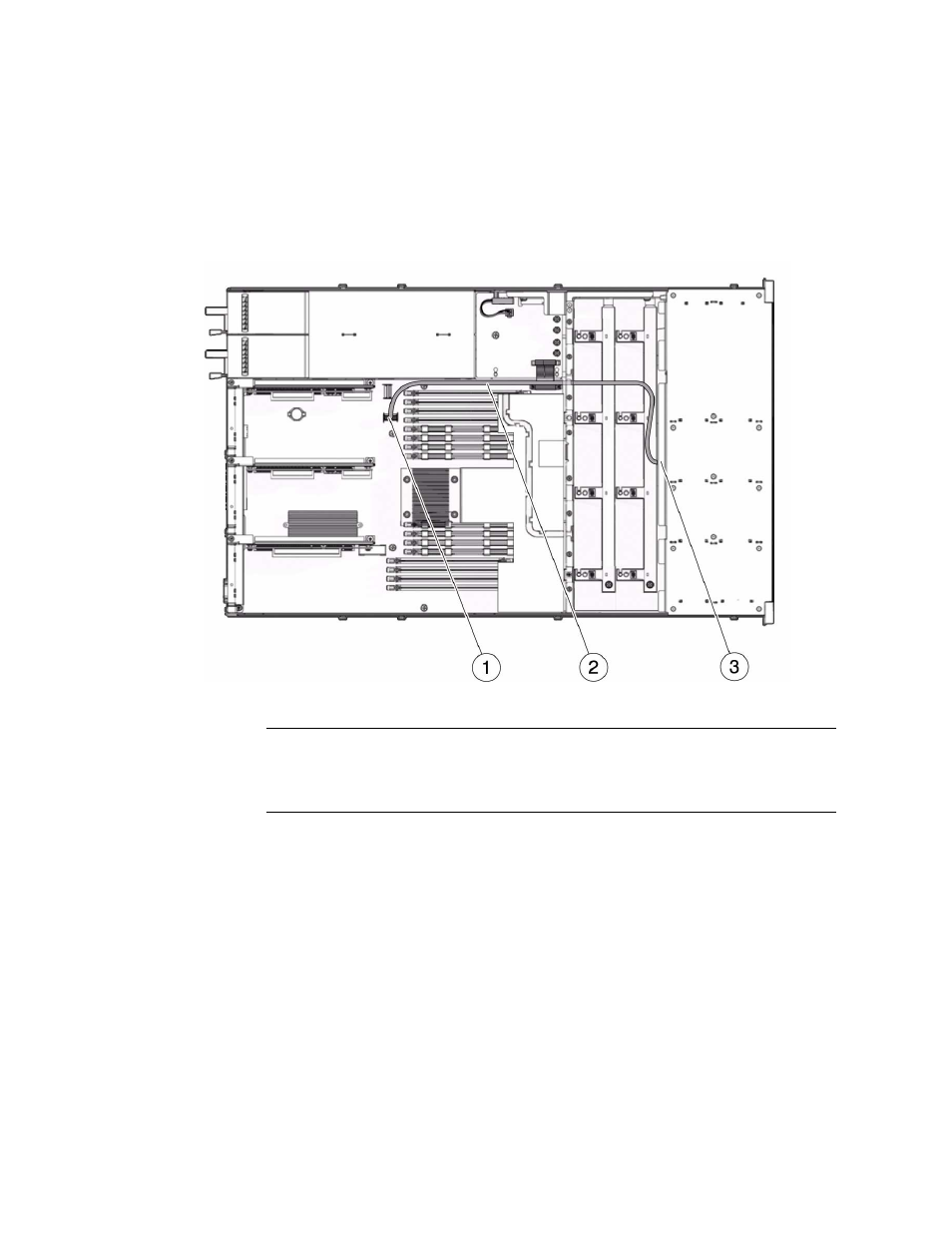

FIGURE:
HDD Cable from Onboard SAS to HDD Backplane (4-Disk Capable SPARC
Enterprise T5120 Server)
Figure Legend
1
Connector on the motherboard.
2
Hard drive data cable; connects J6401 on the motherboard to J0301 on the hard drive backplane
Note - Do not route this cable over the air duct. Instead route it next to the air duct.
3
Connector on hard drive backplane
