204 SPARC Enterprise T5120 and T5220 Servers Service Manual • July 2009

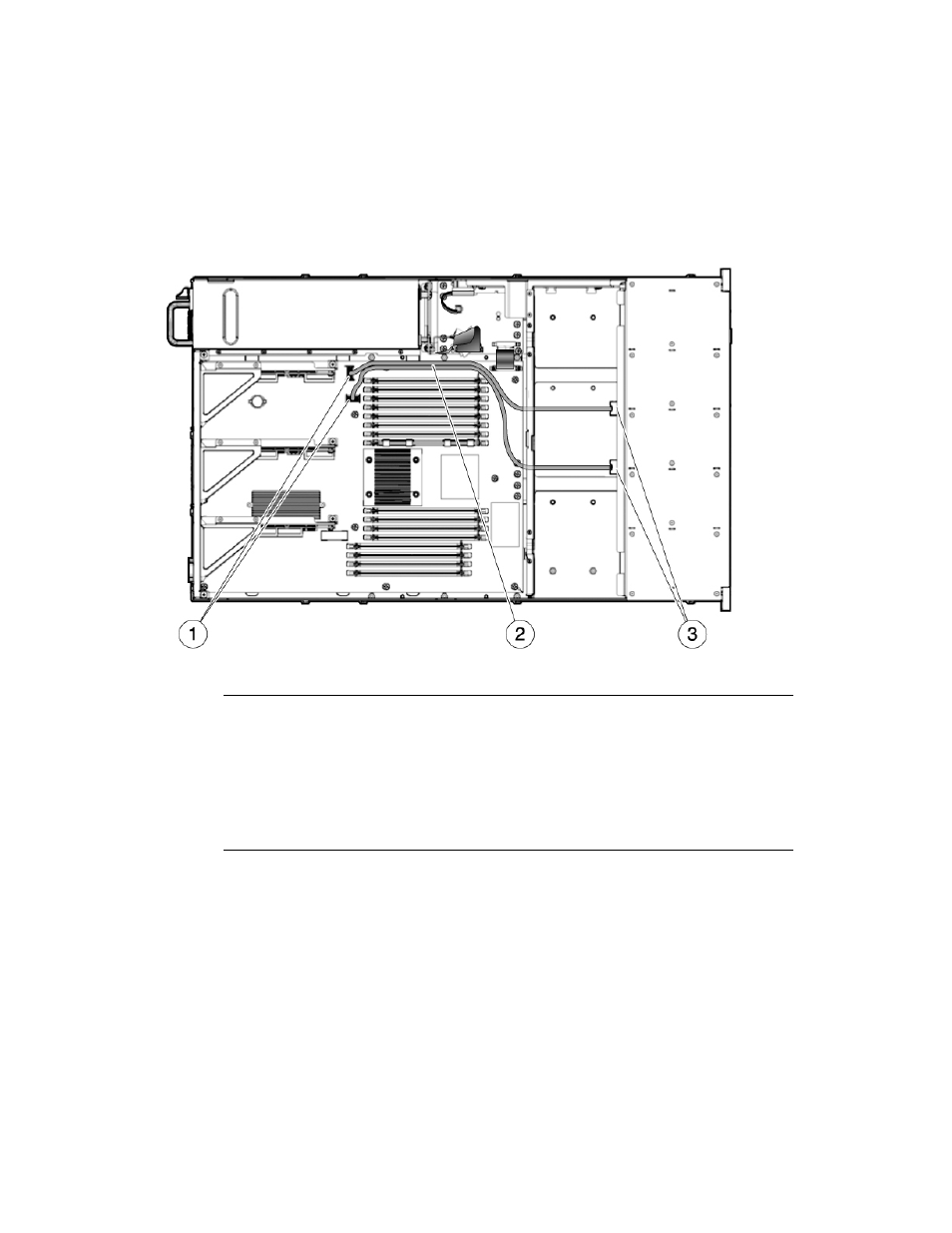

FIGURE: Internal Cables for the Onboard SAS Controller Card (Eight-Disk Capable
SPARC Enterprise T5220 Servers)
Figure Legend
1 Connectors on motherboard
2 Hard drive data cables:
- The short cable connects to J6402 on the motherboard and to J0302 on the hard drive backplane.
- The longer cable connects to J6401 on the motherboard and to J0301 on the hard drive
backplane.
Note - Both cables are routed around the air duct, under the chassis center wall and under the fan
power boards.
3 Connectors on hard drive backplane
