Servicing Boards and Components 139
Related Information
■ “Remove the Hard Drive Backplane” on page 152
DVD/USB Module Overview
The DVD ROM drive and front USB board are mounted in a removable module that
is accessed from the system’s front panel. The DVD/USB module must be removed
from the hard drive cage in order to service the hard drive backplane.

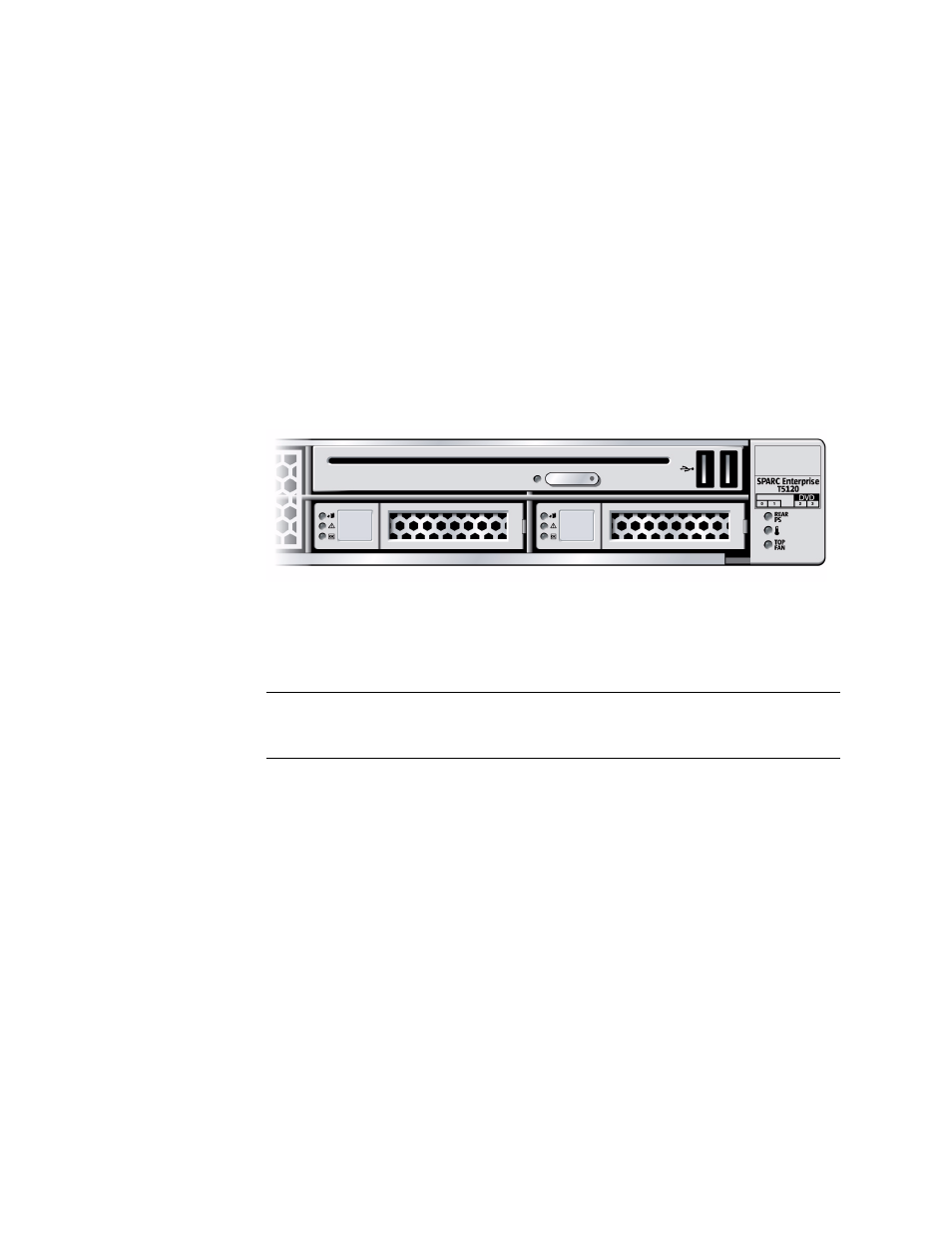

FIGURE: DVD/USB Module in a SPARC Enterprise T5120 Server
The Hard Drive backplane supports either a SATA DVD or a PATA DVD, depending
on when it was manufactured. Servers that contain a SATA-compatible backplane
have a "SATA" label on the front bezel. Servers with the older PATA-compatible
backplanes do not have any DVD label on the bezel.
Note – SATA-compatible backplanes have special keying that prevents full insertion
of a PATA DVD. When installing a PATA-type DVD, do not force the module if it
resists full insertion. It may be that the backplane is not PATA-compatible.
Related Information
■ “Remove the DVD/USB Module” on page 139
■ “Install the DVD/USB Module” on page 141
■ “Remove the Hard Drive Backplane” on page 152
▼ Remove the DVD/USB Module
1. Power off the server.
See “Removing Power From the System” on page 60 .
