Paddle Card Overview

The paddle card serves as the interconnect between the power distribution board and
the fan power boards, hard drive backplane, and front panel I/O board.

Related Information

“Remove the Paddle Card” on page 172

▼ Remove the Paddle Card

1. Remove the motherboard assembly.

See

“Remove the Motherboard Assembly” on page 118

.

2. Remove the power distribution board.

See

“Remove the Power Distribution Board” on page 161

.

3. Remove the fan power boards.

“Remove the Fan Power Board” on page 143

.

4. Remove the two No. 1 Phillips screws securing the paddle card to the chassis.

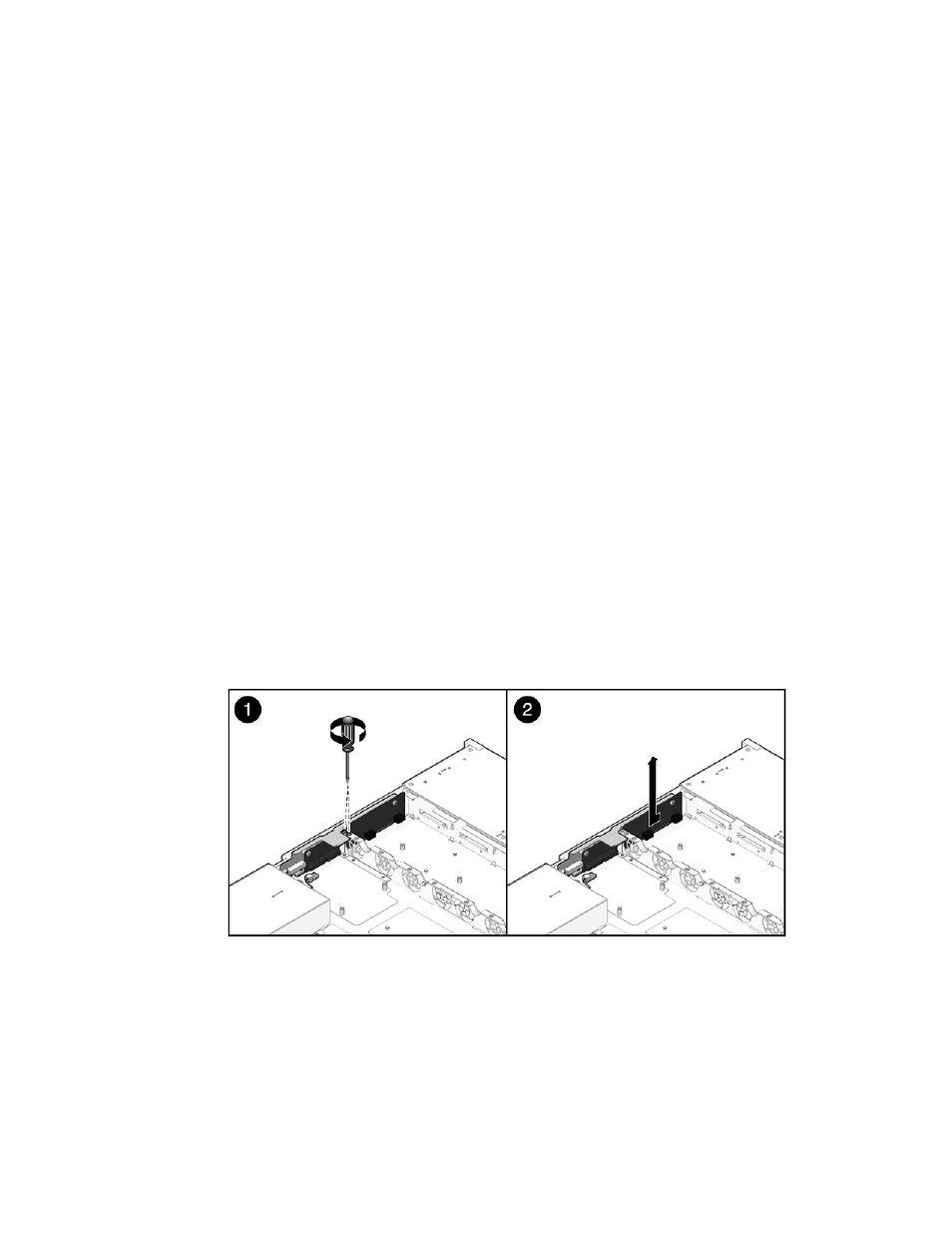

FIGURE:

Removing a Paddle Card (Illustrating Removal From a SPARC Enterprise T5120
Server)

5. Slide the paddle card back, away from its connector on the hard drive

backplane.
