170 SPARC Enterprise T5120 and T5220 Servers Service Manual • July 2009
Related Information
■ “Install the Power Supply Backplane” on page 170
▼ Install the Power Supply Backplane
1. Mount the power supply backplane to the front of the power supply bay.
Place the backplane over its standoffs. Press down toward the floor of the chassis.

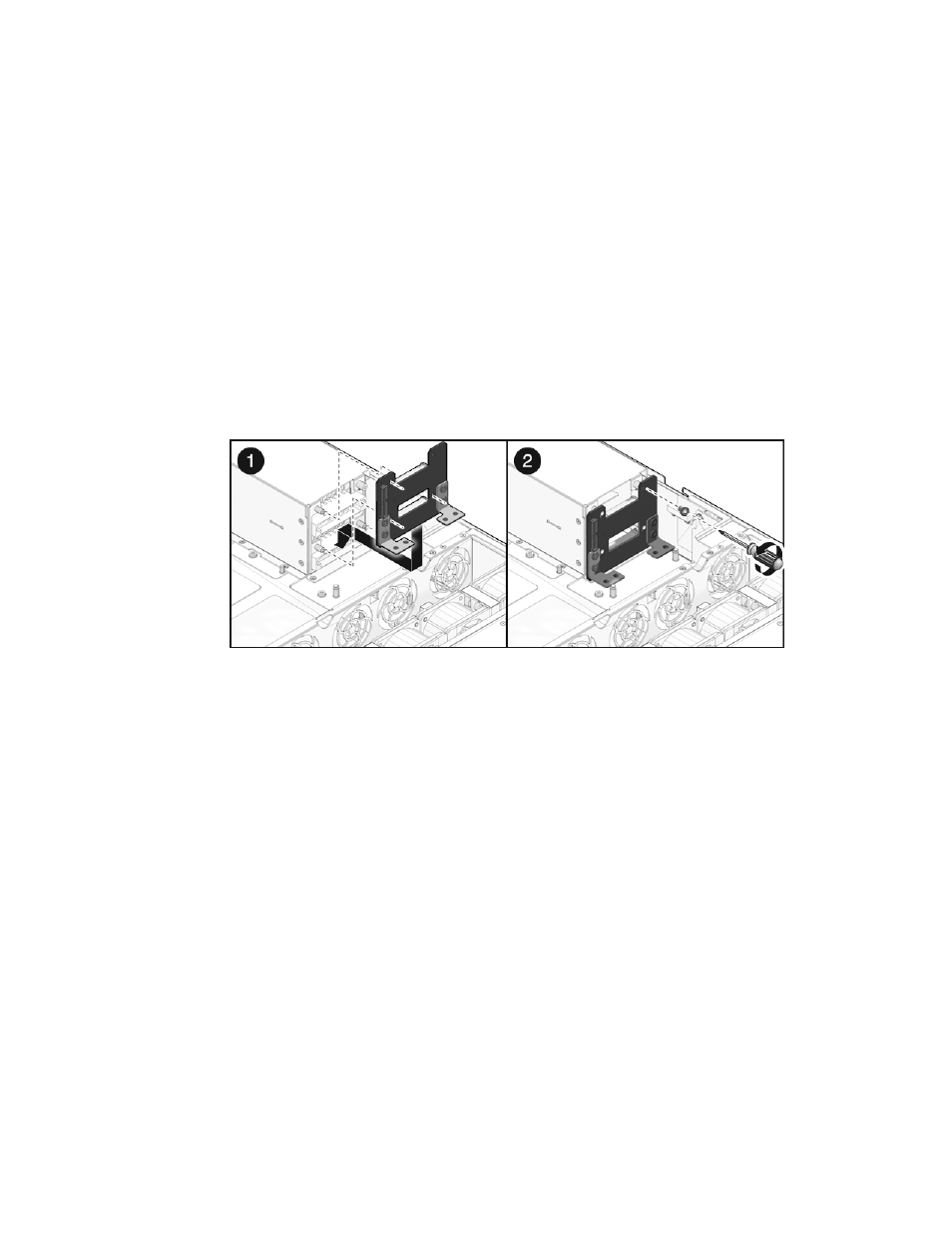

FIGURE: Installing a Power Supply Backplane (Illustrating an Installation in a SPARC
Enterprise T5220 Server)
2. Secure the power supply backplane with one No. 2 Phillips screw.
3. Install the power distribution board.
See “Install the Power Distribution Board” on page 163 .
4. Install the power supplies.
Slide each power supply into its bay until the power supply locks into place.
