142

SPARC Enterprise T5120 and T5220 Servers Service Manual • July 2009

FIGURE:

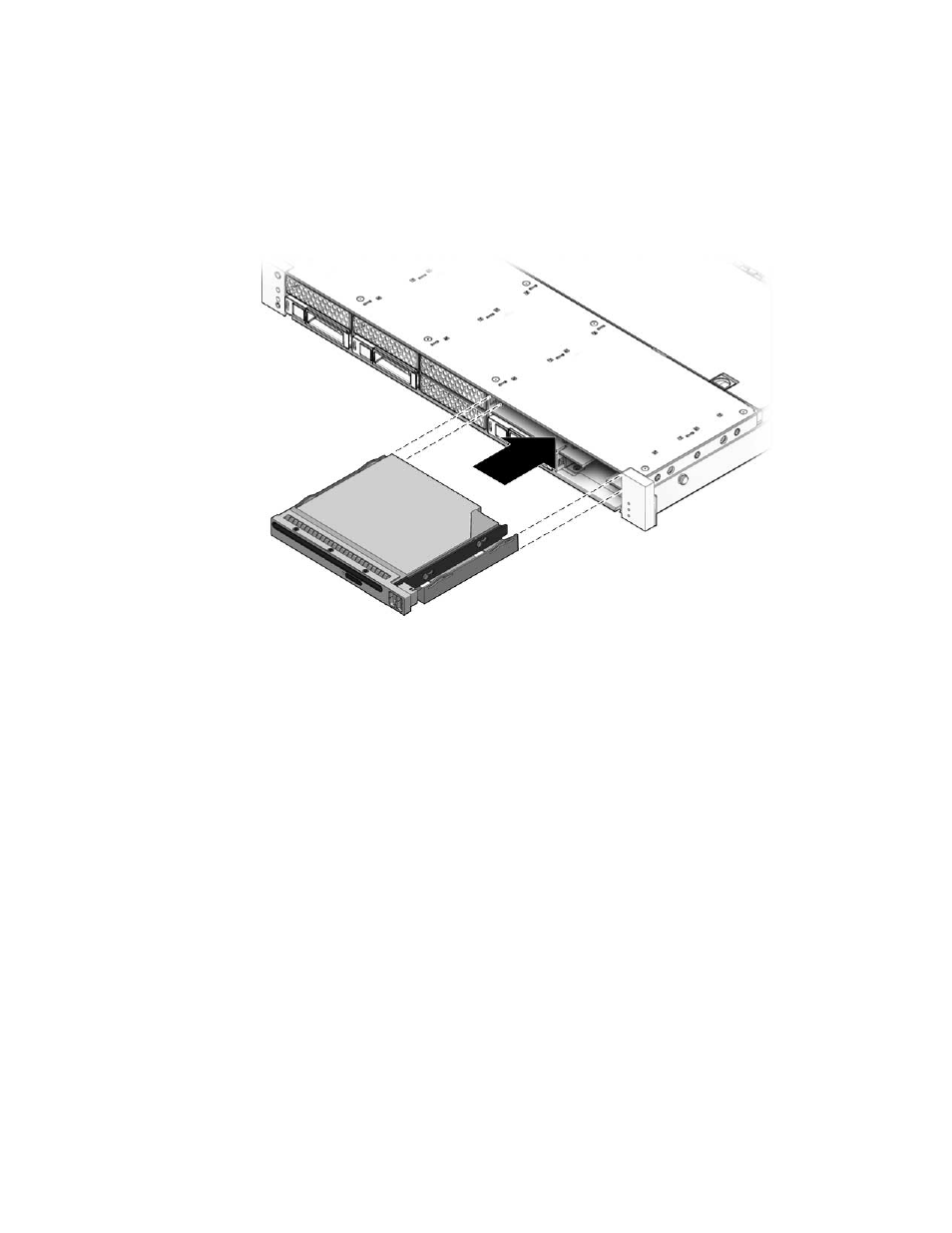

Installing the DVD/USB Module (Illustrates installing in a SPARC Enterprise
T5120 server)

2. Slide the pull tab back into the system.

3. Install the hard drive you removed during the DVD/USB module removal

procedure.

4. Plug in the power cords.

See

“Connect Power Cords to the Server” on page 178

.

5. Power on the system.

See

“Power On the Server Using the poweron Command” on page 179

or

“Power

On the Server Using the Front Panel Power Button” on page 180

.

Related Information

“Remove the DVD/USB Module” on page 139

“Servicing the Hard Drive Backplane” on page 152
