Sensor Installation and Connection 3-33
SURFACE COMBO/ULTRASONIC DEPTH SENSOR
SENSOR MOUNTING PLATE

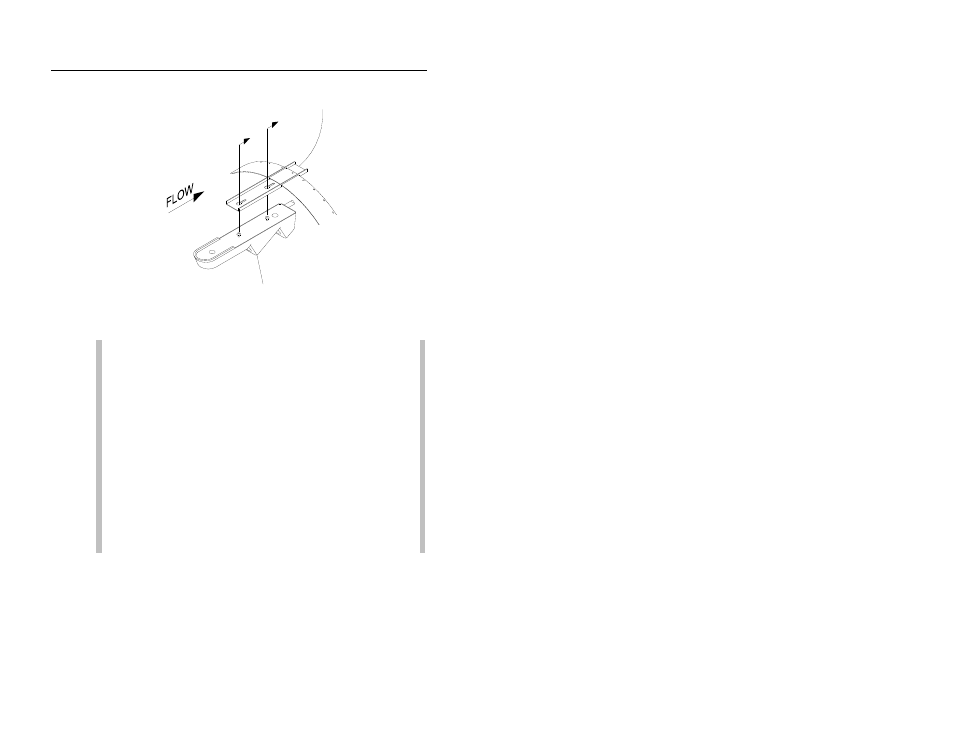

Mounting the Surface Combo or Ultrasonic Depth Sensor to the mounting
plate on the ring
Note: For applications that involve replacing a previous
version of the Ultrasonic Depth Sensor (for example, ADS
p/n 8K-CS3-V0-XX-30) with a new Ultrasonic Depth
Sensor (ADS p/n 8K-CS5-D1-00-30) and an existing ring
remains assembled and secured in the pipe, use a sliding
adapter bracket (ADS p/n 8000-0299) to accommodate the
new sensor in the existing sensor mounting plate. Once the
previous sensor has been removed, slide the adapter
bracket into the groves on the existing plate from the
upstream end of the plate until the adapter bracket contacts
the backstop at the downstream end of the plate. The new
sensor attaches to the adapter bracket in the same way it
attaches to the new sensor mounting plate (ADS p/n 8000-
0307), described in step 5 above.
