C). Locate the enclosure under an awning or other

structure to prevent direct sun exposure. For indoor installation,
mount the XIO/XBUS in a location that prevents tampering or
potential damage from occurring.

1. Turn over the XIO/XBUS, and locate the four holes on the

back of the unit.

2. Attach the four mounting brackets to the back of the

XIO/XBUS using the mounting bracket screws. The brackets
and screws are included with the XIO/XBUS. Refer to the
following figure for details on how to secure the mounting
brackets to the unit.

XIO/XBUS

MOUNTING BRACKET

SCREW

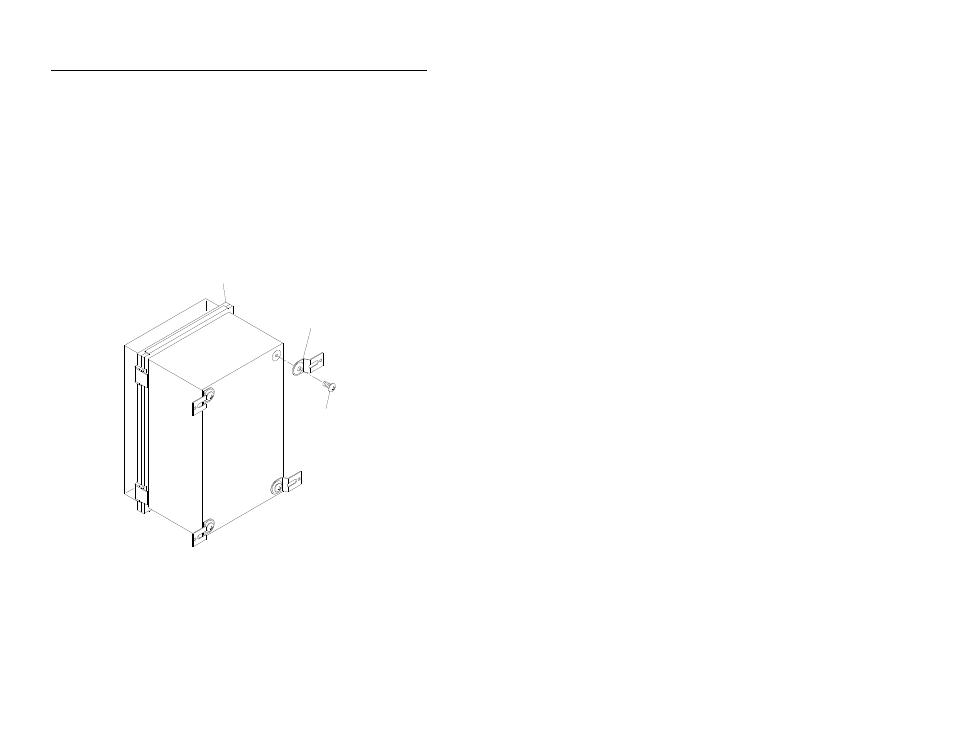

Attaching the mounting brackets to the back of the XIO/XBUS

3. Identify the location on the wall, other solid structure, or rack at

which you want to mount the XIO/XBUS.
