4-18 ADS TRITON+ Manual
TRITON+
COMM + EXT PWR
connector
type - B
USB Serial Interface Cable
Laptop Computer
USB A-to-B Cable
Primary cable
Interface Box
connector
type - A
USB Port
L E N N A H C 2
SENS
CPU
E T N A A N N
SENSORS L E N N A H C 1
WAKE
+ EX T
R w w w.adsenv.com
C O MM PW R
TM
STAT US
CONTAINS CELL XMTR FCC ID: R17HE910
Ex ia IIB T3(152°C) Ga Sira 09ATEX2027X
II 1 G 0518
MODEL: 8000 - FHK/FST-IM Use only battery pack 8000-0043
IECEx SIR09.0020X
Ta = -20°C to +60°C Ex ia IIB T3(152°C) Ga
Rev DATE
MODEL: 8000 - FHK/FST-IM
Utilisez uniquement la batterie 8000-0043
Ta = -20°C to +60°C CSA 2013 2671180
Ex ia IIB T3 (152°C) S/N
See CONTROL DWG 8000BK0009 Voir SCHEMA DE CONTROLE
Use only battery pack 8000-0043 SIR 006

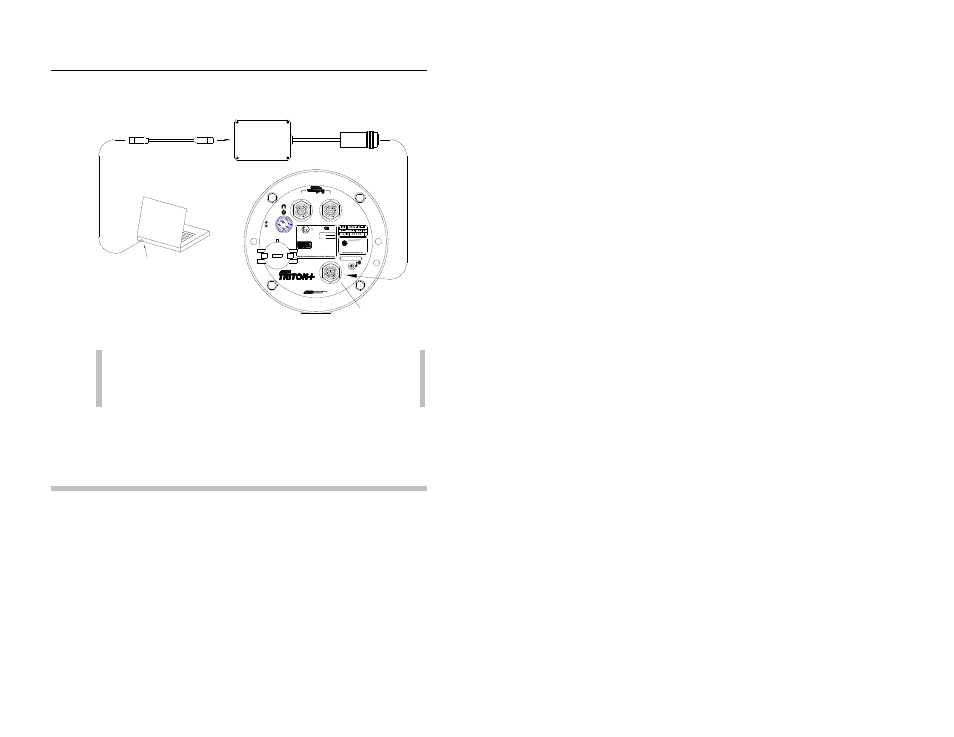

Connecting the USB Serial Interface cable to a laptop and monitor
Note: When using the optional extension cable (ADS p/n
8000-0044-25), run it between the monitor and the USB
Serial Interface cable.
4. Designate the appropriate local USB port on the computer for
communication through the Qstart software. For more
information, refer to the Qstart online help.
Connecting to the Monitor through the ExPAC
1. Insert the Type A connector from the standard USB cable into
the proper USB port on the computer.
2. Insert the Type B connector from the other end of the USB
cable into the USB port on the top of the ExPAC.
