Sensor Installation and Connection 3-61
SLIDING ADAPTER BRACKET
ULTRASONIC DEPTH SENSOR
ANGLED SURCHARGE BRACKET

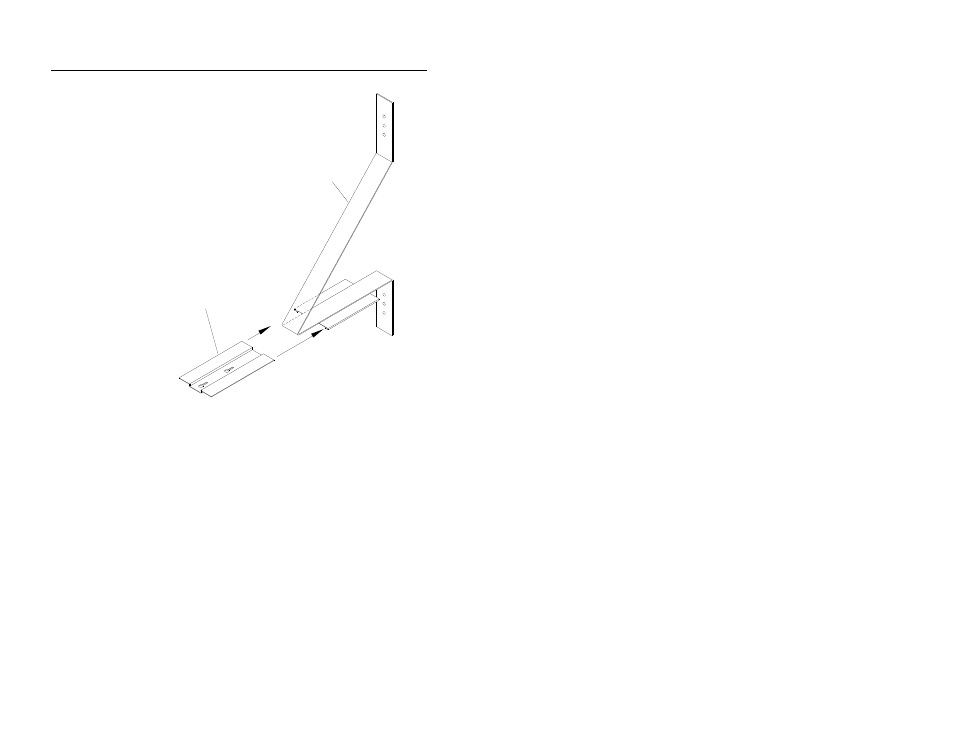

Inserting the Sliding Adapter Bracket into the sensor mounting plate on the
surcharge bracket
12. Attach the Ultrasonic Depth Sensor to the sliding adapter
bracket by inserting the studs on the back of the sensor into the
keyholes on the adapter bracket and sliding the sensor back
until it is fully in place. The sensor cable should be exiting
toward the manhole wall.
