Monitor Installation 7-3
Mounting the Monitor on Manhole
Rung
The simplest way to mount a monitor in a manhole is to attach it to
a rung. TRITON+ monitors come with a standard hook (ADS p/n
8000-0021) for this purpose.
 Make sure the rungs are capable of holding the weight of the
monitor and cables. The monitor weighs 30.3 pounds (13.7 kg)
with added weight coming from the cables.
 The hook must be closed to prevent accidental dislodging from
its support rung. The hook has two pieces, a curved portion
that goes over the rung and a straight portion which closes the
hook underneath the rung. The hook must be closed and the
clamping bolt/nut tight enough to ensure that the straight
closure remains in position.

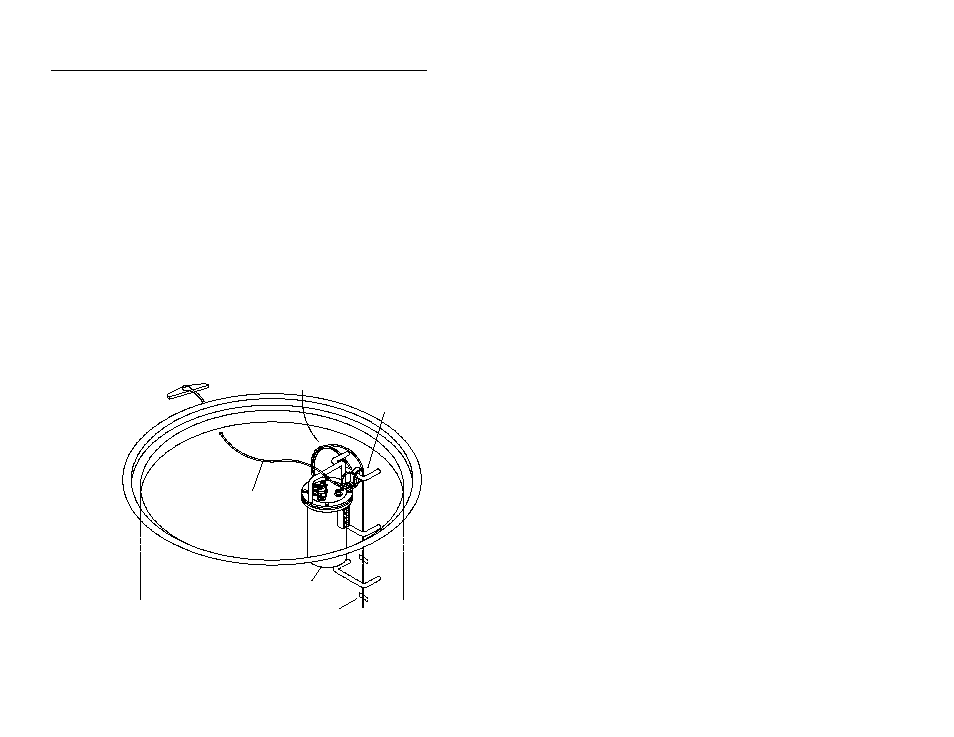

SERVICE LOOP
SHOWN FOR CLARITY)
GSM ANTENNA
CABLE(S) ANCHORED TO WALL
MOUNT
MANHOLE
(ONLY ONE CABLE
BURIED
RIM
LADDER RUNG
TRITON+ MONITOR
ANTENNA CABLE
TRITON+ monitor secured to a manhole rung
