Sensor Installation and Connection 3-55
Note: For applications that involve replacing a previous
version of the Ultrasonic Depth Sensor (for example, ADS
p/n 8K-CS3-V0-XX-30) with a new Ultrasonic Depth
Sensor (ADS p/n 8K-CS5-D1-00-30) and a band already
exists and is secured in the pipe, use a sliding adapter
bracket (ADS p/n 8000-0299) to accommodate the new
sensor in the existing sensor mounting plate. Once the
previous sensor has been removed, slide the adapter
bracket into the groves on the existing plate from the
upstream end of the plate until the adapter bracket contacts
the backstop at the downstream end of the plate.

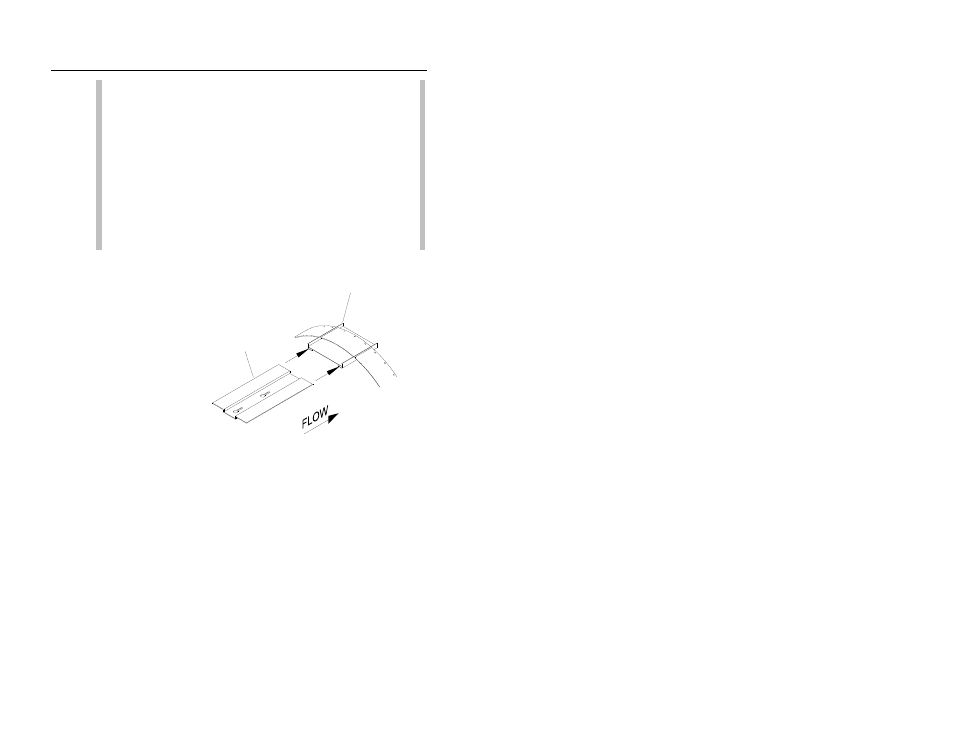

SLIDING ADAPTER BRACKET
SENSOR MOUNTING PLATE
ULTRASONIC DEPTH SENSOR
PREVIOUS VERSION OF
SURFACE COMBO/
Inserting Sliding Adapter Bracket into existing sensor mounting plate
7. Align the sensor mounting plate with the scribe marks, and
conform the other end of the curved band with the pipe.
8. Spot drill to mark an anchor bolt location, and mount another
¼-inch x 2 ¼-inch (M6 x 55-mm) anchor bolt to the pipe.
9. Hand-tighten a nut with washer to secure the other end of the
band.
