5-20 ADS TRITON+ Manual
3. Loosen the screws on the +, -, and DC INPUT terminal
connector on the ExPAC (top, right). Refer also to the wiring
label on top of the ExPAC.

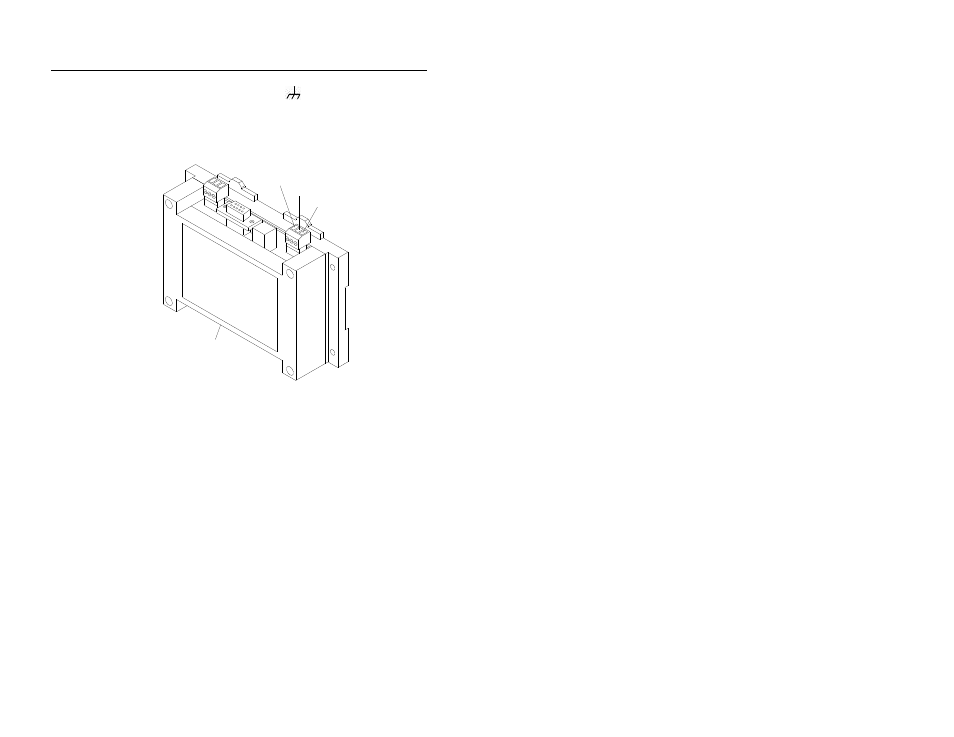

ExPAC
DC INPUT TERMINALS
+ _
GND
DC input terminals on ExPAC
4. Insert the end of one wire into the hole corresponding to the –V
DC output terminal on the power supply, and tighten the
associated terminal screw. Then, insert the other end of the
same wire into the hole corresponding to the negative (-) DC
input terminal on the ExPAC, and tighten the associated
terminal screw.
5. Insert the end of the other wire into the hole corresponding to
the +V DC output terminal on the power supply, and tighten the
associated terminal screw. Then, insert the other end of the
same wire into the hole corresponding to the positive (+) DC
input terminal on the ExPAC, and tighten the associated
terminal screw.
