Configuration and Activation 6-19

Pressure tab – Peak Combo

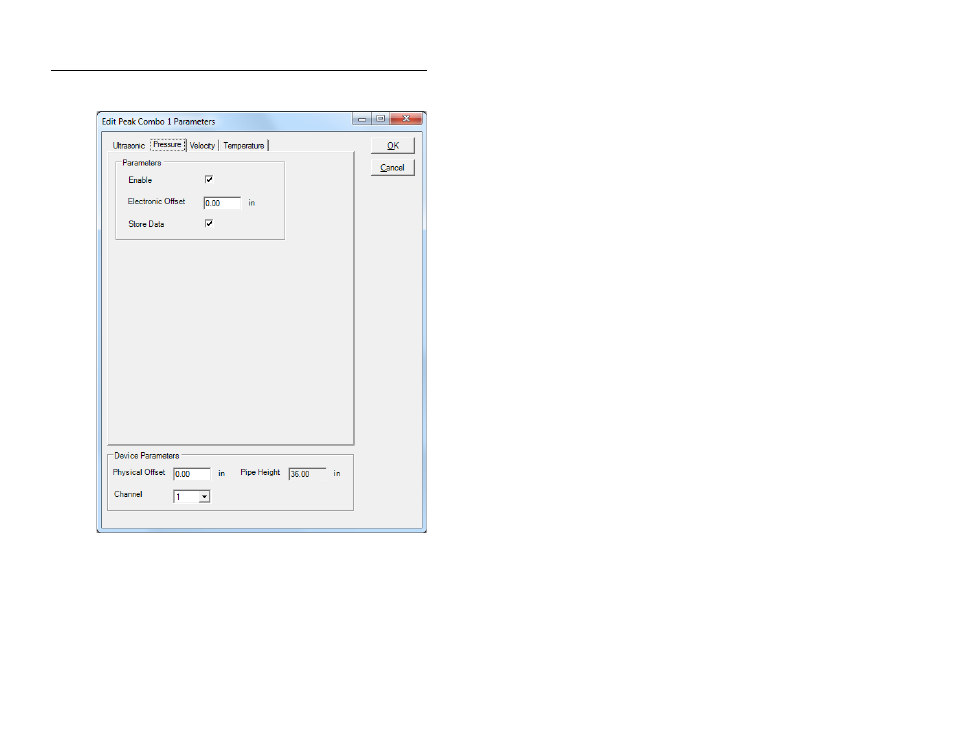

Edit Peak Combo 1 Parameters dialog displaying the Pressure tab

Edit the following parameters corresponding to the pressure depth
sensor in the Peak Combo Sensor:



Enable Select this checkbox to ensure the monitor begins
taking pressure depth readings at the designated interval once
activated. This option is selected by default.
