Sensor Installation and Connection 3-59
Surcharge Mount (applies only to the
Ultrasonic Depth Sensor)
For a site that may experience surcharge conditions, mount the
Ultrasonic Depth Sensor on the manhole wall directly above the
opening of the incoming pipe. This will ensure the sensor measures
the range above the flow surface at the location the flow enters the
manhole. This method of mounting the sensor requires a special
surcharge bracket (ADS p/n I40-0010) and sliding adapter bracket
(ADS p/n 8000-0299). Mount the sensor in the following way:
Note: Handle the Ultrasonic Depth Sensor with care, and
do not expose it to extreme temperatures for an extended
period of time. Keep the sensor in its protective packaging
until it is time for installation.

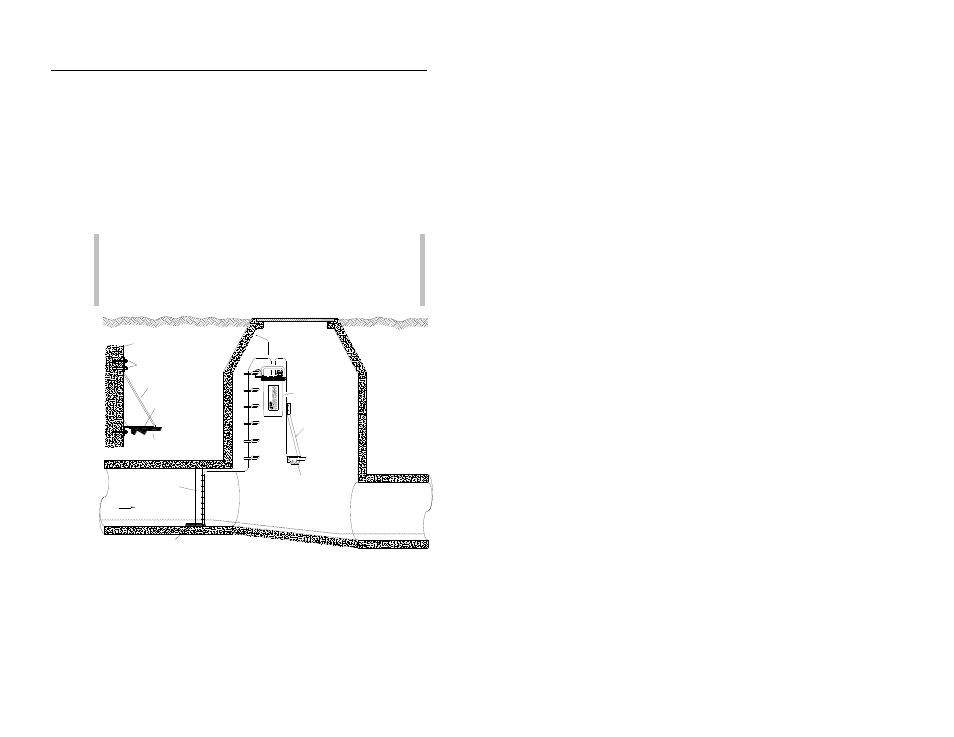

TRITON+ MONITOR
TM
INSTALLATION RING
PEAK COMBO SENSOR
FLOW
MANHOLE WALL
ANCHOR BOLTS
ANGLED METAL BRACKET
SLIDING ADAPTER BRACKET
ULTRASONIC DEPTH SENSOR
(See DETAIL AT LEFT)
METAL BRACKET
ANGLED
ULTRASONIC DEPTH SENSOR
Surcharge Mount
