3-26 ADS TRITON+ Manual
should be in alignment if the sensor is seated properly on
the adapter.
SILT MOUNT ADAPTER
PEAK COMBO SENSOR
SCREWS THROUGH
COUNTERSUNK HOLES
SECURE SENSOR
SENSOR
SECURED TO
ADAPTER

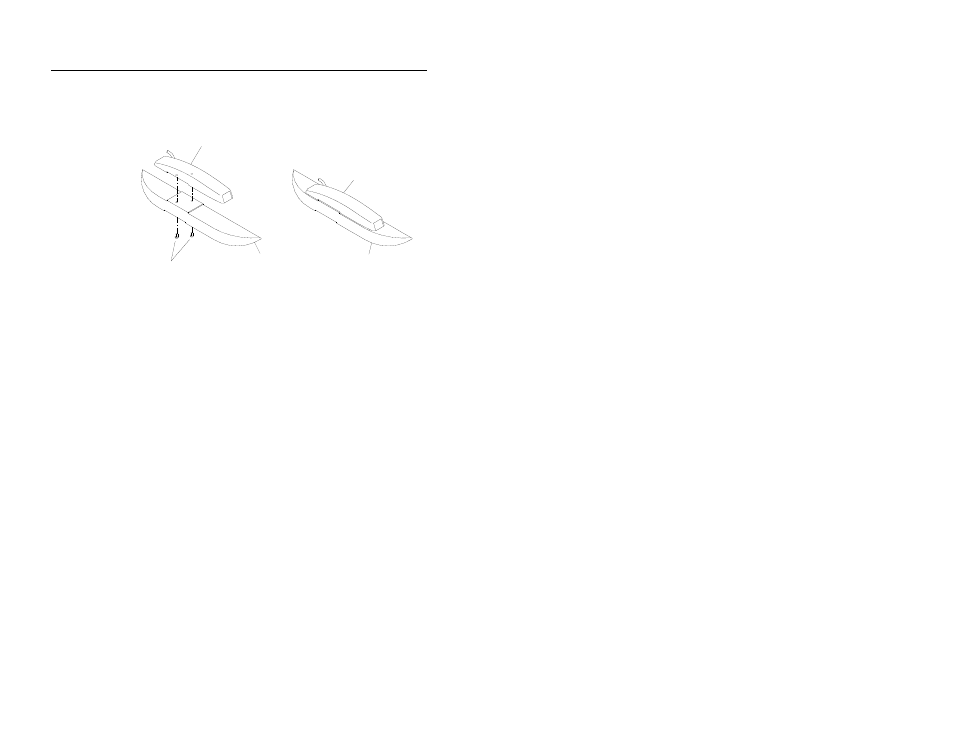

Properly seating and securing the Peak Combo Sensor to the Silt Mount
Adapter
Use two M3 X 10mm stainless steel flathead screws (do
not substitute any other screws) to secure the adapter to
the ring at the appropriate location on the ring to ensure the
sensor will be positioned between 15 and 45 degrees (6:30
to 7:30) up the left side of the pipe and below the flow
surface once installed. The nose of the sensor should be
facing the same direction as the upstream edge of the ring.
