3-24 ADS TRITON+ Manual
without using a special mounting device. A silt mount adapter
can be used to mount the sensor from 15 to 45 degrees up the
left side of the pipe (from the 6:30 to 7:30 position) when a
higher elevation is necessary. However, keep in mind that a
physical offset measurement must be taken when mounting the
sensor in any position outside the bottom of the pipe. Refer to
Installing the Ring in the Pipe on page 3-29.

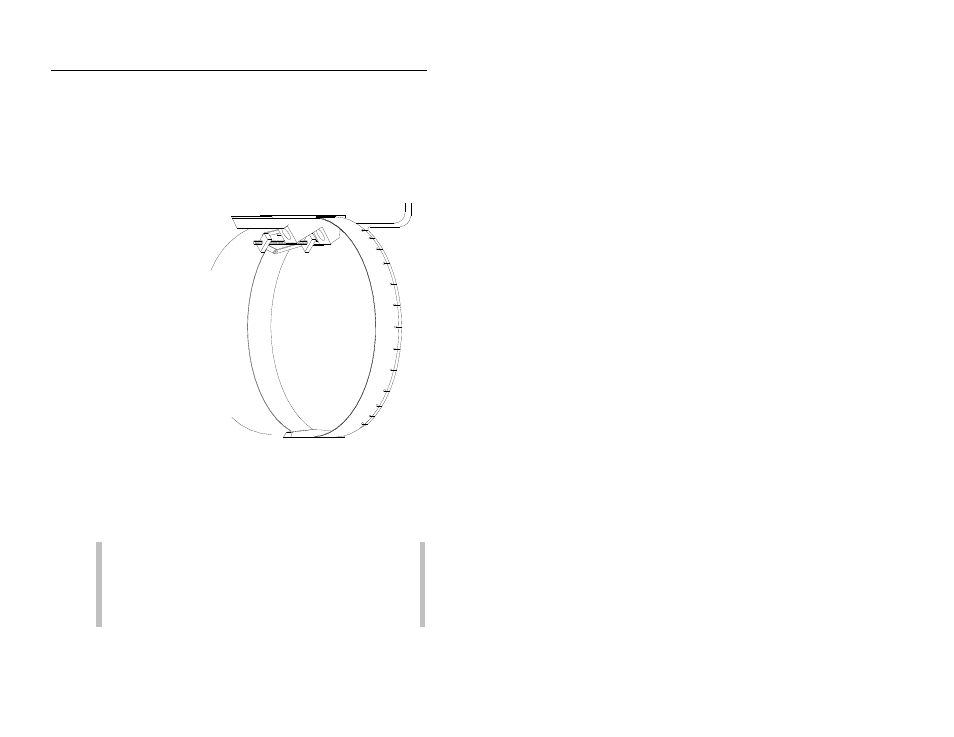

ULTRASONIC DEPTH SENSOR
OR
SURFACE COMBO SENSOR
PEAK COMBO SENSOR
Proper positioning of sensors on the ring (showing the Surface Combo
Sensor at top and Peak Combo Sensor at bottom)
Surface Combo Sensor or Ultrasonic Depth Sensor
Mount the sensor at the twelve o’clock position (top of the
pipe) when the spreader mechanism is in the one o’clock
position.
Caution: Handle all sensors and cables with extreme
care. The sensors and cables contain delicate mechanisms
and electronics. Keep sharp objects away from sensor
cables, and avoid stepping or placing heavy objects on the
cable during installation.
